Panasonic EEHAZA1V271B Hybrid Aluminum Capacitor
The Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors of the ZA series are high-performance radial lead capacitors designed for reliable operation in electronic circuits. With a standard endurance of 10,000 hours at 105°C, these capacitors feature AEC-Q200 and RoHS compliance, making them suitable for automotive and industrial applications. They offer a wide temperature range from -55°C to +105°C, rated voltages from 25V to 80V, and capacitance values between 33µF and 220µF. Their hybrid construction ensures low ESR, stable capacitance, and long life, ideal for high-reliability environments.
Panasonic EEHAZA1V271B Hybrid Aluminum Capacitor Specifications:
- Size code: varies by capacitance and voltage rating
- Temperature range: -55°C to +105°C
- Rated voltage range: 25 V to 80 V
- Capacitance: 33 µF to 220 µF
- Capacitance tolerance: ±20%
- Endurance: 10,000 hours at 105°C
- Ripple current: specified per model (e.g., 2300 mA rms at 150 µF, 25 V)
- Dissipation factor (tan δ): ≤ 0.6% at 120Hz/20°C
- Leakage current: within initial limits after specified life tests
- Damp heat (load): 85%～90% RH for 2000 hours at rated voltage
- RoHS and AEC-Q200 compliant
- Marking: Black color, negative polarity mark, example: 25 V 150 µF
- Physical dimensions vary per size code, typical lead diameter 0.6 mm, case size 8.0 mm diameter

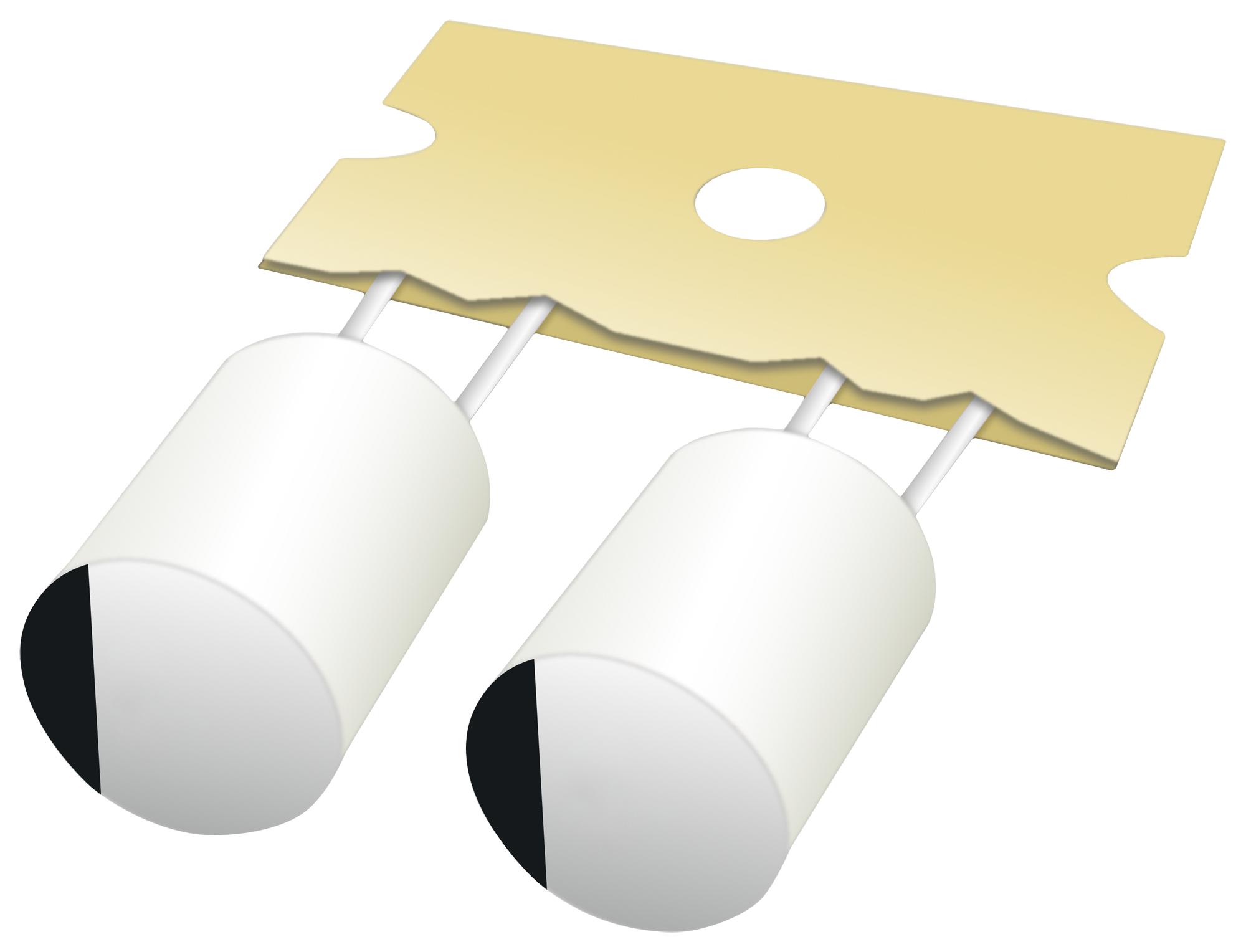

- Taping: standard for automatic insertion, see specifications for details
Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Part Number EEHAZA1V271B Online
Enhance your electronic designs with the Panasonic Conductive Polymer Hybrid Aluminum Capacitors. Featuring long endurance of 10,000 hours at 105°C, low ESR, and broad temperature range, these capacitors ensure dependable operation in automotive, industrial, and high-reliability applications. Their hybrid construction offers stable capacitance and minimal dissipation factor, making them perfect for demanding environments. Easily order online and secure high-quality capacitors with proven durability, RoHS compliance, and optimal performance for your critical projects.
Order your Panasonic SeriesEEHAZA1V271B hybrid aluminum electrolytic capacitor today and ensure long-lasting, reliable performance for your electronics projects.
Frequently Asked Questions
Where can I buy Panasonic EEHAZA1V271B?
You can click on the BUY or RFQ button to purchase EEHAZA1V271B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZA1V271B?
You can download the EEHAZA1V271B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZA1V271B?
Panasonic
