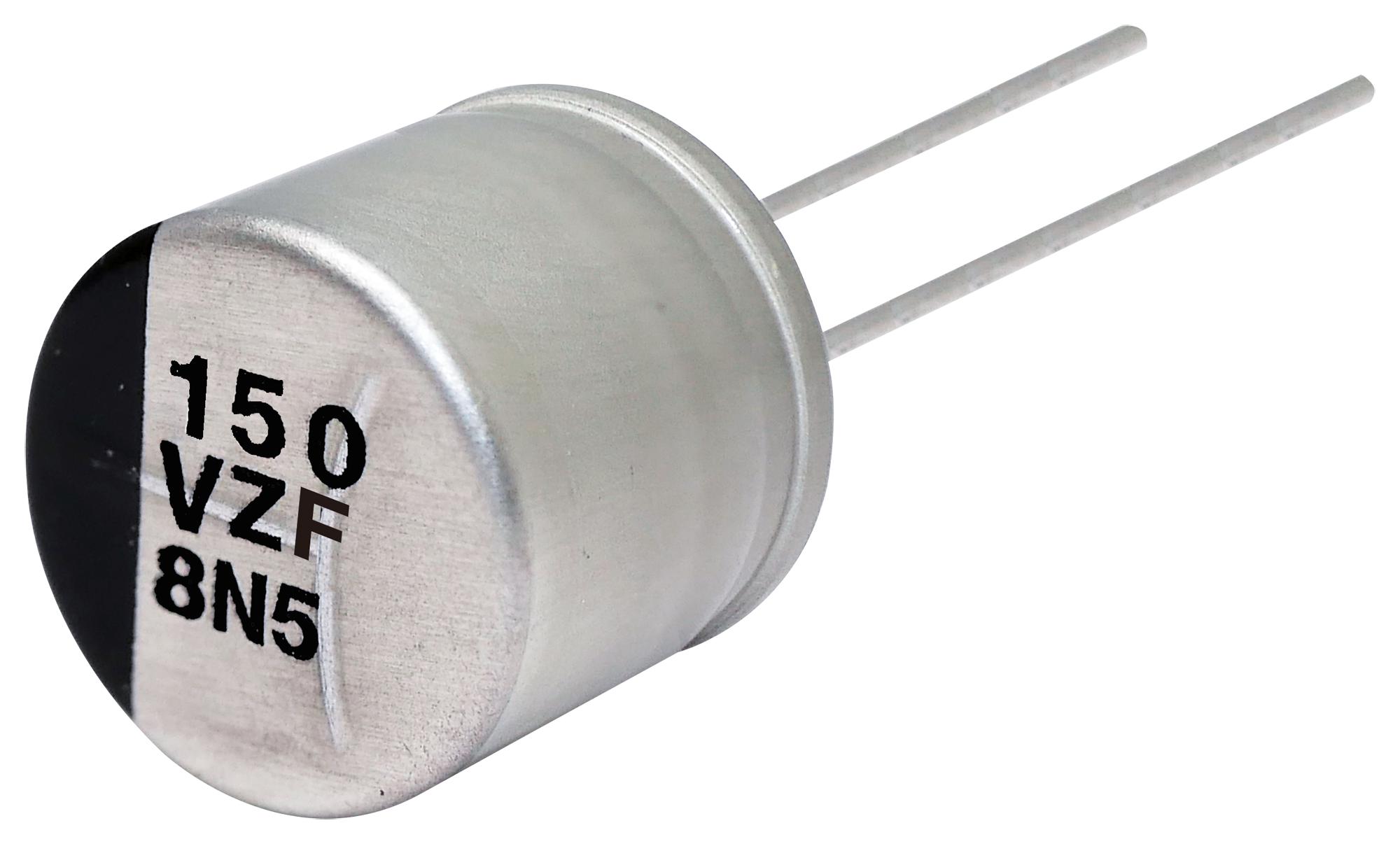

Panasonic EEHAZF1H560 Conductive Polymer Capacitor
Conductive Polymer Hybrid Aluminum Electrolytic Capacitors in the ZF-A series offer high endurance at 150 °C for 1000 hours, with high withstand voltage up to 63 V. Designed for reliable performance with small characteristic dependencies in frequency and low temperature, they are suitable for automatic insertion taping and conform to AEC-Q200 and RoHS standards. These capacitors feature a compact radial lead design, optimized for electronic circuits requiring stability, durability, and efficient heat management in various industrial applications.
Panasonic EEHAZF1H560 Conductive Polymer Capacitor Specifications:
- Size code F CG
- Category temp. range: -55°C to +150°C
- Rated voltage range: 25 V to 63 V
- Capacitance range: 33 UF to 150 UF, 56 UF to 270 UF
- Capacitance tolerance: ±20% (120 Hz / +20°C)
- Leakage current: 0.01 CV (μA), 2 minutes after rated voltage application
- Surge voltage: 1.25 × rated voltage (15°C to 35°C)
- Endurance: 1000 hours at 150°C with rated ripple current
- Capacitance change: Within ±30% of initial value after endurance
- Dissipation factor (tan δ): See attached characteristics list
- ESR: Within 200% of initial limit
- Leakage current: Within initial limit after endurance
- Mounting: Compatible with taping for automatic insertion
- Compliance: AEC-Q200, RoHS
Buy the Panasonic Series ZF-A Conductive Polymer Hybrid Aluminum Capacitors: EEHAZF1H560
Explore the Panasonic Conductive Polymer Hybrid Aluminum Capacitor ZF-A series, engineered for high-temperature environments and demanding applications. With 1000 hours endurance at 150°C, up to 63V withstand voltage, and a compact radial lead design, it ensures excellent stability and long-term reliability. Suitable for automated assembly and compliant with AEC-Q200 and RoHS, these capacitors are ideal for electronics requiring durability, high thermal tolerance, and consistent performance. Purchase online today to benefit from advanced technology and dependable quality.
Get Panasonic ZF-A Series EEHAZF1H560 today—built for high-temperature endurance and reliable electronic performance.
Frequently Asked Questions
Where can I buy Panasonic EEHAZF1H560?
You can click on the BUY or RFQ button to purchase EEHAZF1H560 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZF1H560?
You can download the EEHAZF1H560 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZF1H560?
Panasonic
