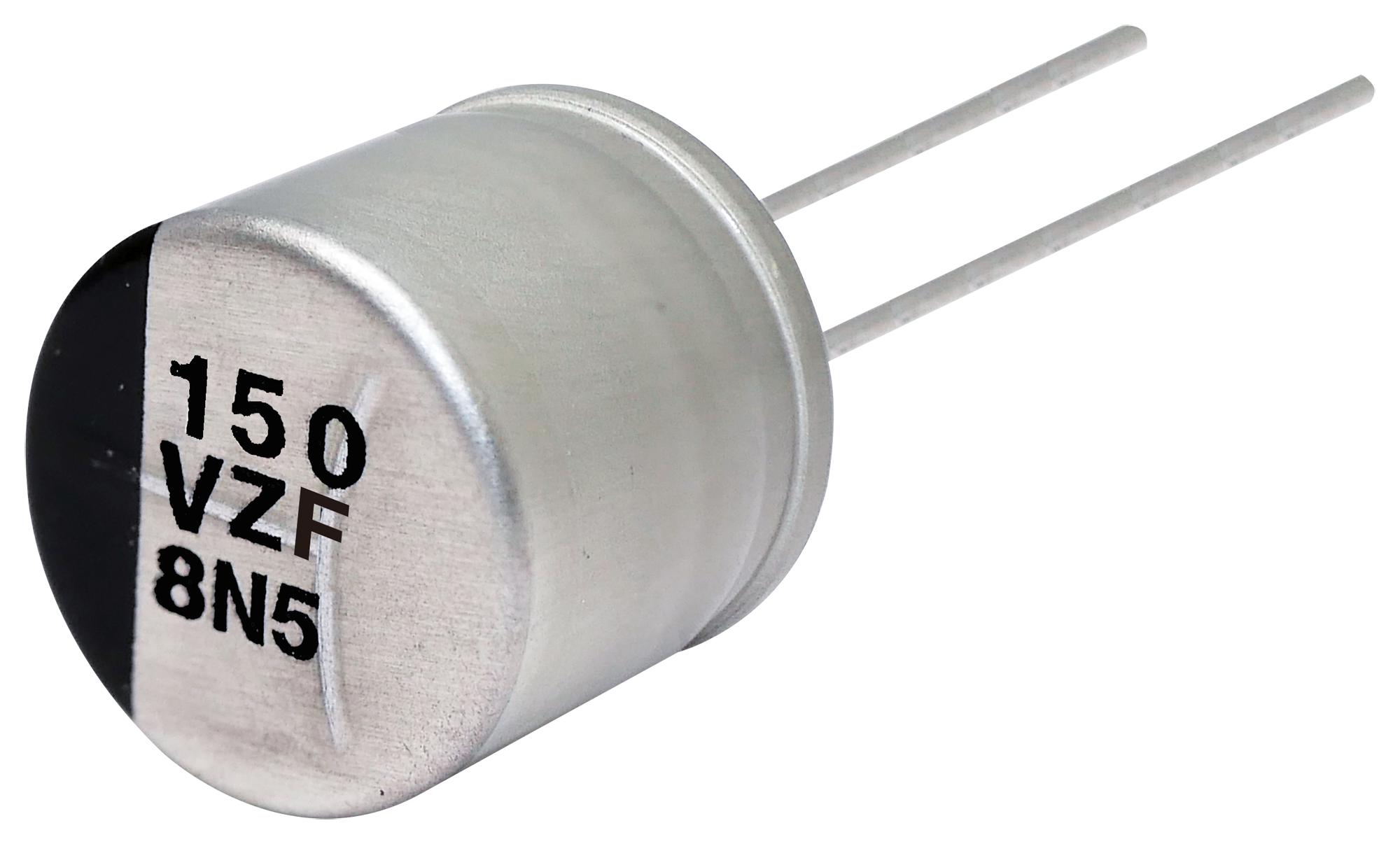

Panasonic EEHAZF1J560 Conductive Polymer Hybrid Aluminum Capacitors
The Conductive Polymer Hybrid Aluminum Electrolytic Capacitors in the ZF-A series offer high endurance at 150°C for 1000 hours, with superior high-temperature stability and high withstand voltage up to 63V. Designed for automatic insertion compatibility, these capacitors feature low frequency and low-temperature characteristics akin to polymer types, with minimal dependency on frequency variations. They comply with AEC-Q200 and RoHS standards, making them suitable for high-reliability automotive and industrial applications. Their construction ensures stable electrical parameters with optimized leakage current, ESR, and dissipation factor over extended usage and environmental conditions.
Panasonic EEHAZF1J560 Conductive Polymer Hybrid Aluminum Capacitors Specifications:
- Size code F CG
- Category temp. range -55 Tto +150 T
- Rated voltage range 25 V to 63 V
- Nominal cap. range 33 UF to 150 UF
- Capacitance tolerance ±20% (120 Hz / +20°C)
- Leakage current 0.01 CV (μA), 2 min after rated voltage application
- Surge voltage 1.25× rated voltage (15°C to 35°C)
- Endurance 1000 hours at +150°C with rated ripple current
- Capacitance change within ±30% of initial
- Dissipation factor (tan δ) ≤ 200% of initial limit
- ESR ≤ 200% of initial limit
- RoHS and AEC-Q200 compliant
- Suitable for automatic insertion, with stable electrical characteristics across frequency and temperature variations
Buy the Panasonic Series ZF-A Capacitors: EEHAZF1J560
Enhance your electronic designs with Panasonic's high-end Conductive Polymer Hybrid Aluminum Capacitors from the ZF-A series. These capacitors deliver outstanding endurance at +150°C for 1000 hours, featuring high withstand voltage up to 63V and low impedance for reliable power management. Perfect for automotive, industrial, and high-reliability applications, their RoHS and AEC-Q200 compliance ensures safety and environmental standards. Designed for automatic insertion and stable operation across diverse temperatures and frequencies, they offer superior electrical stability, low leakage current, and long-term durability for your critical devices.
Buy Panasonic ZF-A series high-temperature hybrid aluminum electrolytic capacitors now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic EEHAZF1J560?
You can click on the BUY or RFQ button to purchase EEHAZF1J560 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZF1J560?
You can download the EEHAZF1J560 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZF1J560?
Panasonic
