Panasonic EEHAZF1V101 Conductive Polymer Aluminum Capacitor
The Conductive Polymer Hybrid Aluminum Electrolytic Capacitors from Panasonic feature high endurance at 150°C for 1000 hours, optimized for high temperature applications and high-voltage use up to 63V. Designed with a low impedance, small characteristic dependencies in frequency and temperature, and compatible with automatic insertion taping, these capacitors are ideal for reliable, high-performance electronic circuits. They comply with AEC-Q200 and RoHS standards, ensuring quality and environmental safety, with excellent stability in various demanding operating environments.
Panasonic EEHAZF1V101 Conductive Polymer Aluminum Capacitor Specifications:
- Size code F CG
- Category temp. range -55°C to +150°C
- Rated voltage range 25 V to 63 V
- Capacitance range 33 μF to 150 μF
- Capacitance tolerance ±20% (120 Hz / +20°C)
- Leakage current 0.01 CV μA, 2 mins after reaching rated voltage
- Surge voltage Rated voltage x 1.25 (15°C to 35°C)
- Endurance 1000 hours at 150°C, with rated ripple current
- Capacitance change within ±30% of initial value
- Dissipation factor (tan delta) see attached list, ESR within 200% initial limit
- Damp heat and load tests ensure stable performance in demanding environments
- Physical dimensions are designed for automatic taping and mounting with pressure relief considerations
- RoHS and AEC-Q200 compliant for automotive and industrial applications
- Designed for high temperature operation with stable electrical characteristics over time

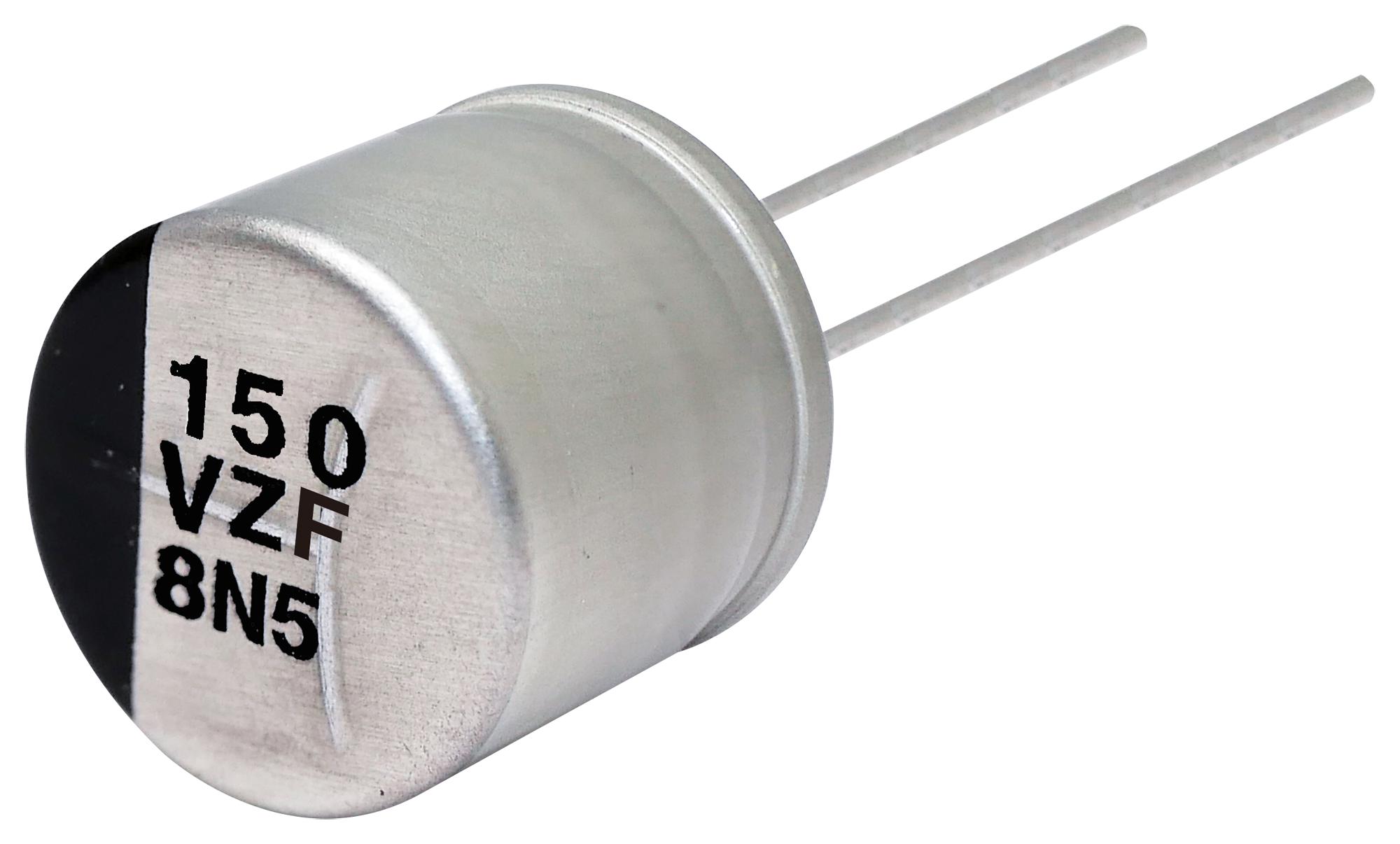

Buy the Panasonic Series ZF-A Conductive Polymer Hybrid Aluminum Capacitors: EEHAZF1V101B
Discover the high-performance Panasonic Conductive Polymer Aluminum Capacitors in the ZF-A series, offering high temperature endurance, high voltage capacity up to 63V, and excellent reliability for automotive and industrial electronics. These capacitors feature a hybrid conductive polymer design that ensures stable electrical characteristics, low impedance, and small dependency on frequency and temperature variations. Suitable for automatic insertion, RoHS compliant, and built to meet strict quality standards, they are an essential component for demanding electronic circuits requiring longevity and stability under harsh conditions.
Order your Panasonic Series ZF-A Conductive Polymer Hybrid Aluminum Capacitor today and ensure your electronic projects benefit from superior temperature endurance and reliable high-voltage performance.
Frequently Asked Questions
Where can I buy Panasonic EEHAZF1V101?
You can click on the BUY or RFQ button to purchase EEHAZF1V101 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZF1V101?
You can download the EEHAZF1V101 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZF1V101?
Panasonic
