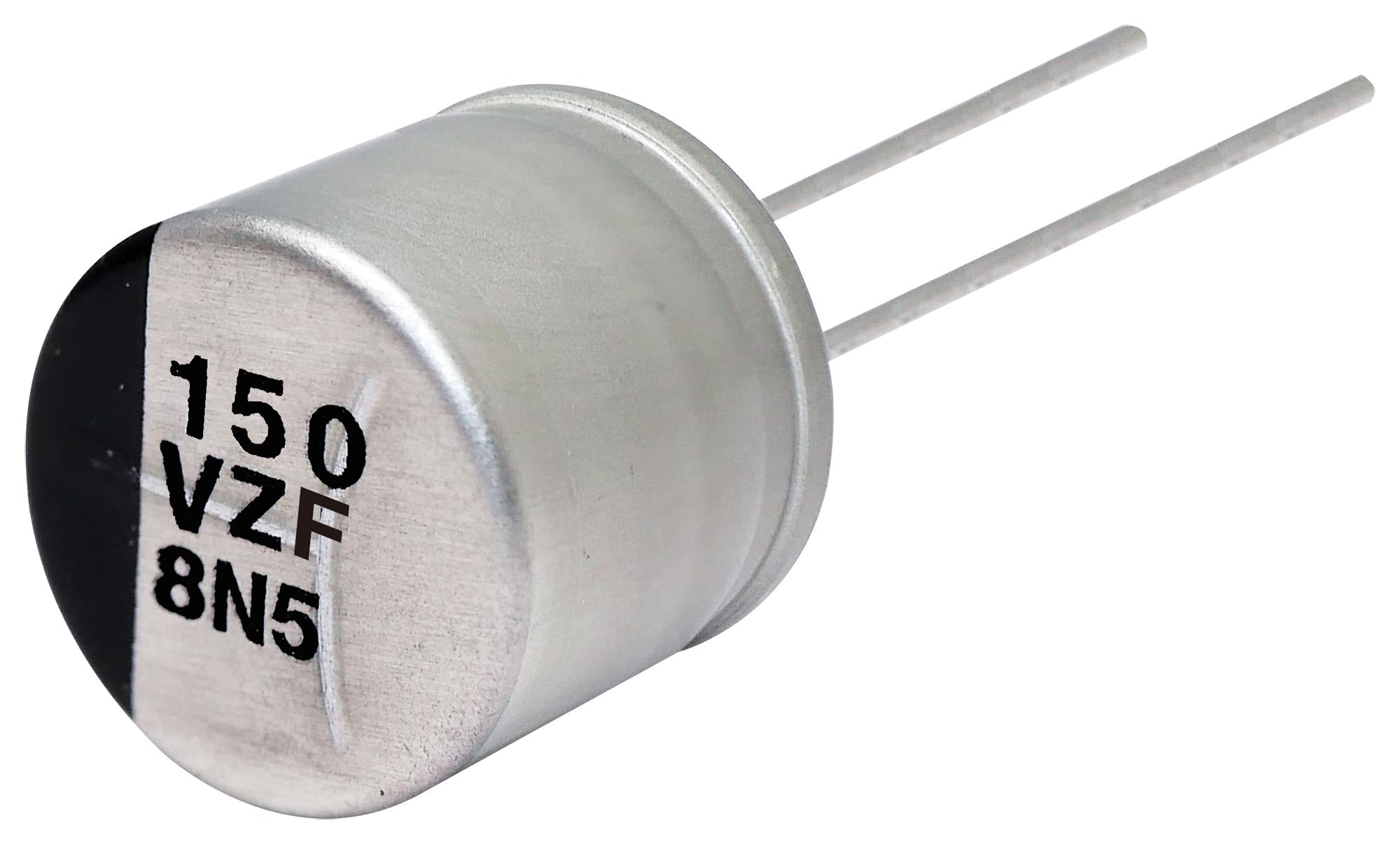

Panasonic EEHAZF1V151 Conductive Polymer Capacitor
This product is a high-temperature, hybrid aluminum electrolytic capacitor designed for industrial and electronic applications. It features a conductive polymer hybrid electrolyte, offering excellent endurance of 1000 hours at 150°C, high withstand voltage up to 63V, and compatibility with automatic insertion taping systems. Suitable for use in power supplies, motor drives, and industrial devices, it maintains stable electrical characteristics across frequency and temperature variations. The capacitor complies with RoHS and AEC-Q200 standards, ensuring safety, reliability, and environmental friendliness in demanding electronic systems.
Panasonic EEHAZF1V151 Conductive Polymer Capacitor Specifications:
- Size code F CG
- Category temp. range: -55°C to +150°C
- Rated voltage range: 25 V to 63 V
- Nominal capacitance: 33 μF to 150 μF
- Capacitance tolerance: ±20% (120 Hz / +20°C)
- Leakage current: 0.01 CV (μA), 2 min after applying rated voltage
- Dissipation factor: as per characteristics list
- Surge voltage: rated voltage × 1.25 (15°C to 35°C)
- Endurance: 1000 hours at 150°C with rated ripple current
- Capacitance change: within ±30% of initial value
- Dissipation factor (tan 8): ≤200% of initial limit
- ESR: ≤200% of initial limit
- Maximum case clearance: 2 mm for pressure relief
- Mounting: compatible with taping for automatic insertion
Buy the Panasonic EEHAZF1V151 – Reliable Conductive Polymer Hybrid Aluminum for Industrial Applications
Order the Panasonic conductive polymer hybrid aluminum electrolytic capacitor EEHAZF1V151 online today to ensure your electronic projects and industrial systems benefit from high temperature endurance, stable electrical characteristics, and reliable performance. This capacitor meets strict RoHS and AEC-Q200 standards, providing you with environmentally friendly and high-quality components. Its compatibility with automatic insertion taping simplifies assembly, reducing production time. Investing in Panasonic capacitors guarantees durability, safety, and efficiency for your power supplies, motor drives, and industrial electronics, making your projects more dependable and long-lasting.
Buy Panasonic EEHAZF1V151 now and experience unmatched reliability and performance in high-temperature industrial electronic systems.
Frequently Asked Questions
Where can I buy Panasonic EEHAZF1V151?
You can click on the BUY or RFQ button to purchase EEHAZF1V151 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZF1V151?
You can download the EEHAZF1V151 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZF1V151?
Panasonic
