Panasonic EEHAZS1E471B Conductive Polymer Capacitor
The product is a hybrid electrolytic capacitor designed for high performance in electronic applications. It features a conductive polymer hybrid aluminum construction, offering excellent endurance of 4000 hours at 125°C, low ESR, high ripple current capacity, and compliance with AEC-Q200 and RoHS standards. Suitable for use in automotive, industrial, and consumer electronics, it provides reliable operation over a wide temperature range from -55°C to +125°C. The capacitor's compact size, radial lead configuration, and taping design facilitate automated assembly and robust circuit integration, ensuring stability and durability in demanding environments.
Panasonic EEHAZS1E471B Conductive Polymer Capacitor Specifications:
- Size code: G12, G16
- Operating temperature range: -55°C to +125°C
- Rated voltage: 25 V to 63 V
- Capacitance range: 100 μF to 560 μF
- Capacitance tolerance: ±20% (120Hz / +20°C)
- DC leakage current: Within initial limit, specific values vary by capacitance
- Dissipation factor (tan δ): ≤ 0.01 CV (WA) after 2 minutes at 20°C
- Endurance: 4000 hours at 125°C with rated ripple current
- Shelf life: 1000 hours at +125°C, stabilized at +20°C with performance maintained
- Resistance to damp heat: 85% to 90% RH, 2000 hours at rated voltage
- Soldering heat resistance: Meets specified reflow and flow soldering conditions
- Marking: Black color, negative polarity marked, size 10.0×11.7 mm G12, 10.0×15.7 mm G16
- Compliance: RoHS, AEC-Q200, UL approved

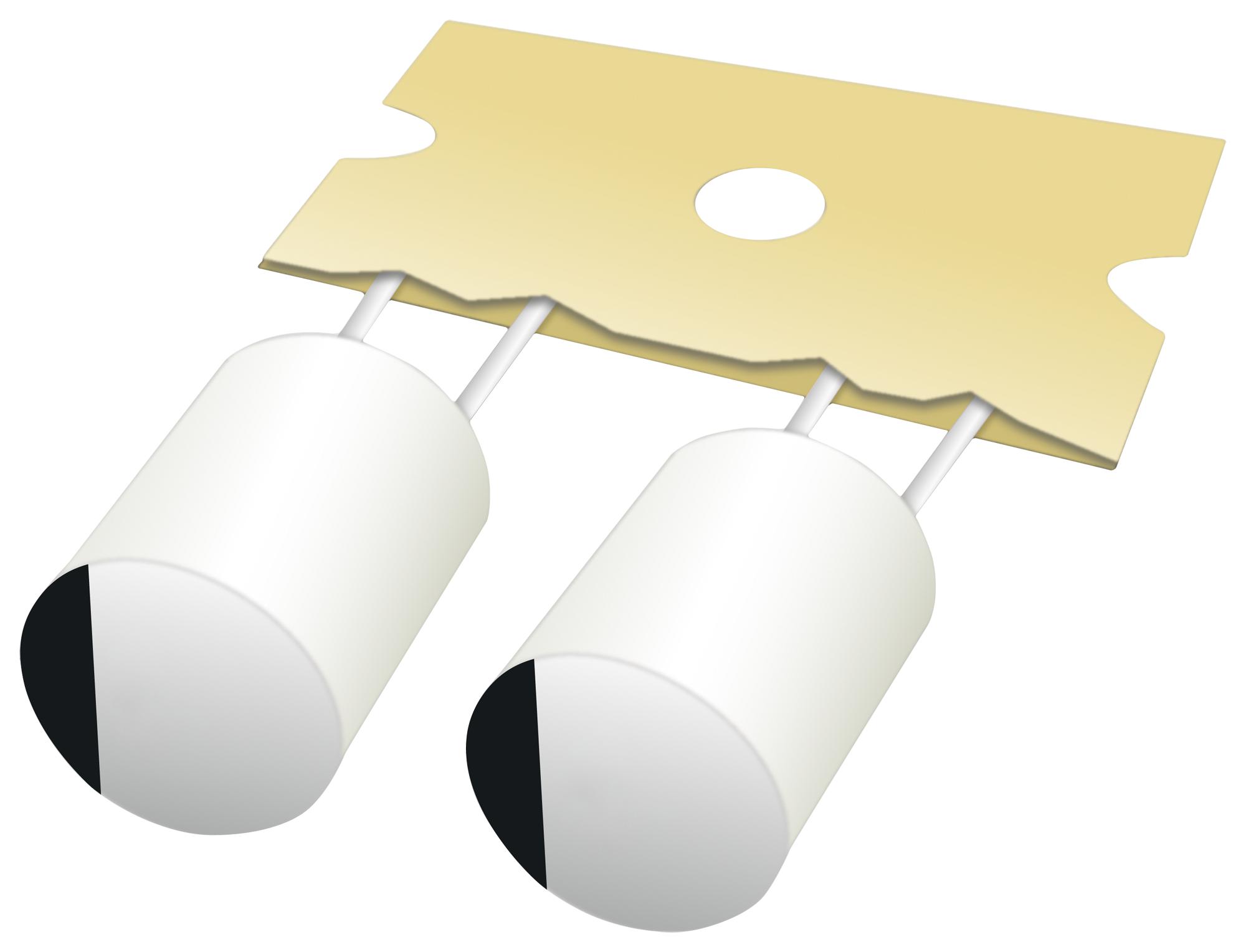

Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Part Number EEHAZS1E471B Online
Order Panasonic Conductive Polymer Capacitor online today to ensure high durability and thermal stability in demanding electronic environments. This hybrid aluminum electrolytic capacitor guarantees excellent endurance of 4000 hours at 125°C and features low ESR for efficient power management. Perfect for automotive, industrial, and consumer electronics, it simplifies assembly with taping and radial lead configurations. Take advantage of swift delivery, genuine quality, and technical support by purchasing directly from authorized suppliers. Secure your high-performance component now!
Buy Panasonic EEHAZS1E471B now and experience unmatched reliability and high ripple current performance in automotive and industrial applications.
Frequently Asked Questions
Where can I buy Panasonic EEHAZS1E471B?
You can click on the BUY or RFQ button to purchase EEHAZS1E471B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZS1E471B?
You can download the EEHAZS1E471B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZS1E471B?
Panasonic
