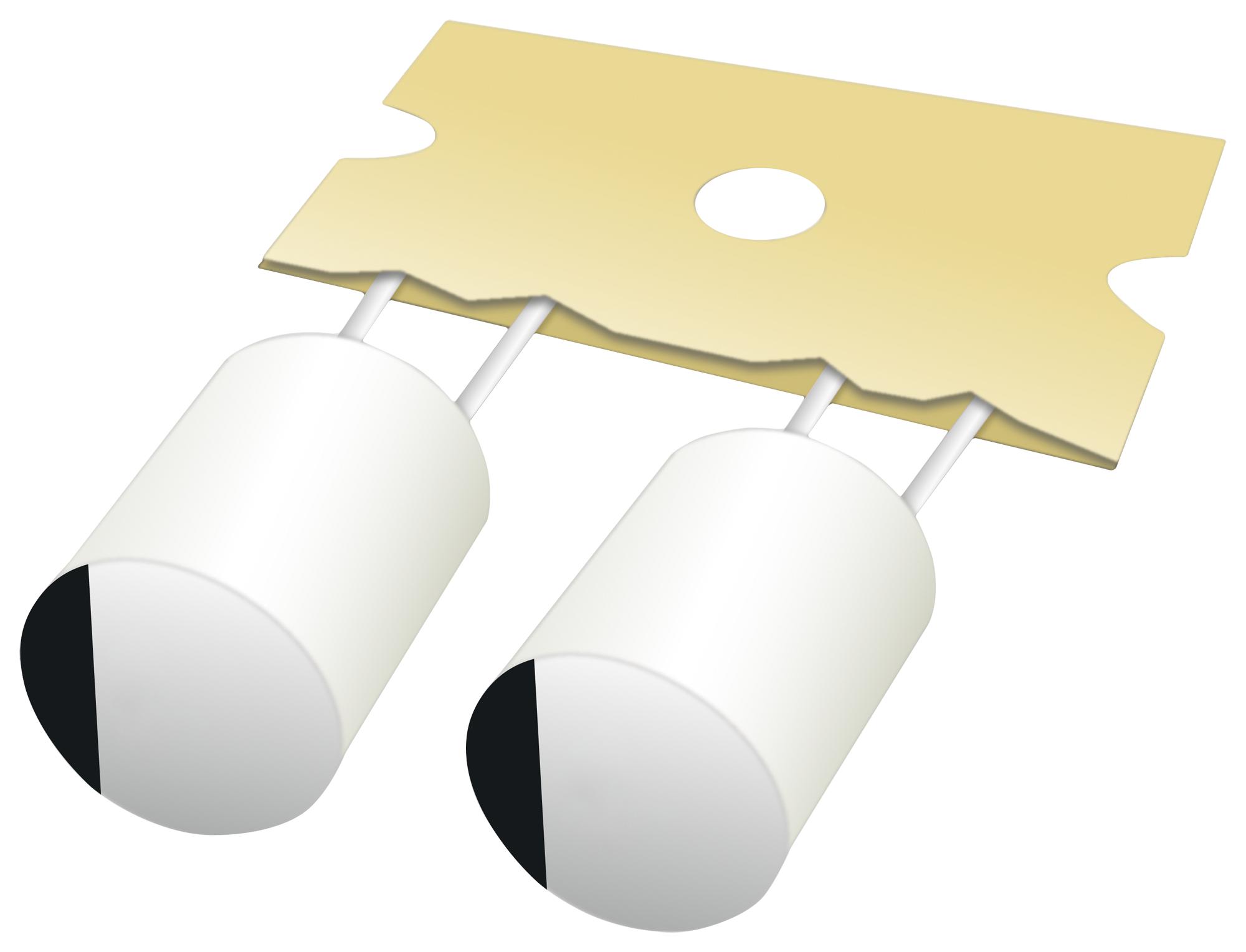

Panasonic EEHAZS1E561B Hybrid Aluminum Capacitor
The Conductive Polymer Hybrid Aluminum Capacitor series offers high endurance, low ESR, and high ripple current capabilities, suitable for electronic circuits requiring reliability. Designed with advanced hybrid technology, these capacitors support temperatures ranging from -55°C to +125°C and feature taping for automatic insertion. Compliant with AEC-Q200 and RoHS standards, they are ideal for automotive and high-reliability applications. With a lifespan of 4000 hours at 125°C, they ensure consistent performance with minimal leakage current and stable capacitance over extensive operational periods, making them essential components in complex power management and electronic systems.
Panasonic EEHAZS1E561B Hybrid Aluminum Capacitor Specifications:
- Capacitance range: 100 µF to 470 µF and 150 µF to 560 µF
- Rated voltages: 25 V to 63 V
- Size codes: G12, G16
- Operating temperature: -55°C to +125°C
- Endurance: 4000 hours at 125°C with rated ripple current
- Leakage current: Within initial limits, DC leakage current: Is 0.01 CV after 2 min
- Capacitance change: Within +30% of initial value after endurance
- Dissipation factor (tan δ): ≤200% of initial limit
- ESR after endurance: ≤200% of initial limit at 100 kHz
- Humidity test: 85% to 90% RH for 2000 hours at 85°C
- Shelf life: Meets endurance limits after storage at 125°C for 1000 hours
- Compliance: RoHS and AEC-Q200
- Taping: For automatic insertion, dimensions vary by size code
- Construction: Conductive polymer hybrid aluminum electrolytic technology
- Application: Power supply, automotive electronics, high-reliability circuits
Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Part Number EEHAZS1E561B Online
Purchase Panasonic Conductive Polymer Hybrid Aluminum Capacitor EEHAZS1E561B online today to ensure your electronic projects benefit from high endurance, low ESR, and stable performance. Designed for high-reliability applications, these capacitors withstand harsh temperatures up to 125°C for 4000 hours and feature advanced hybrid technology that guarantees minimal leakage current and consistent capacitance. With RoHS and AEC-Q200 compliance, buying this component online offers convenience, quality assurance, and quick delivery, enabling you to optimize power management systems with confidence and efficiency.
Buy Panasonic EEHAZS1E561B now and experience unmatched reliability and high performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Panasonic EEHAZS1E561B?
You can click on the BUY or RFQ button to purchase EEHAZS1E561B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZS1E561B?
You can download the EEHAZS1E561B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZS1E561B?
Panasonic
