Panasonic EEHZA1E470V Conductive Polymer Aluminum Capacitor
These Panasonic conductive polymer hybrid aluminum electrolytic capacitors are surface-mount type designed for high temperature and high ripple current applications. With an endurance of 10,000 hours at 105°C, they offer low ESR and high ripple current handling capabilities, including high voltage options up to 80V DC. Suitable for vibration-proof environments and compliant with RoHS and AEC-Q200 standards, these capacitors feature excellent temperature stability, capacitance retention within +30%, and reliable long-term performance under demanding conditions.
Panasonic EEHZA1E470V Conductive Polymer Aluminum Capacitor Specifications:
- Category temperature range: -55°C to +105°C
- Rated voltage: 25 V.DC to 80 V.DC
- Capacitance: 10 to 330 μF
- Capacitance tolerance: +20% (120 Hz / +20°C)
- Endurance: 10,000 hours at 105°C
- Ripple current: up to 80V rated voltage versions handling high ripple
- Dissipation factor (tan δ): Specifications available in characteristics list
- ESR: S 200% of initial limit at 100 kHz / -40°C
- Leakage current: Within initial limit after specified conditions
- Size code: Various sizes D, D8, F, G with corresponding dimensions
- Vibration-proof option available upon request
- RoHS and AEC-Q200 compliant
- Operating temperature: -55°C to +105°C
- Capacitance change: Within +30% initial value
- Shelf life: At least 2,000 hours at +85°C with 85-90% humidity
- Reflow and soldering: Meets specified thermal profiles ensuring stability

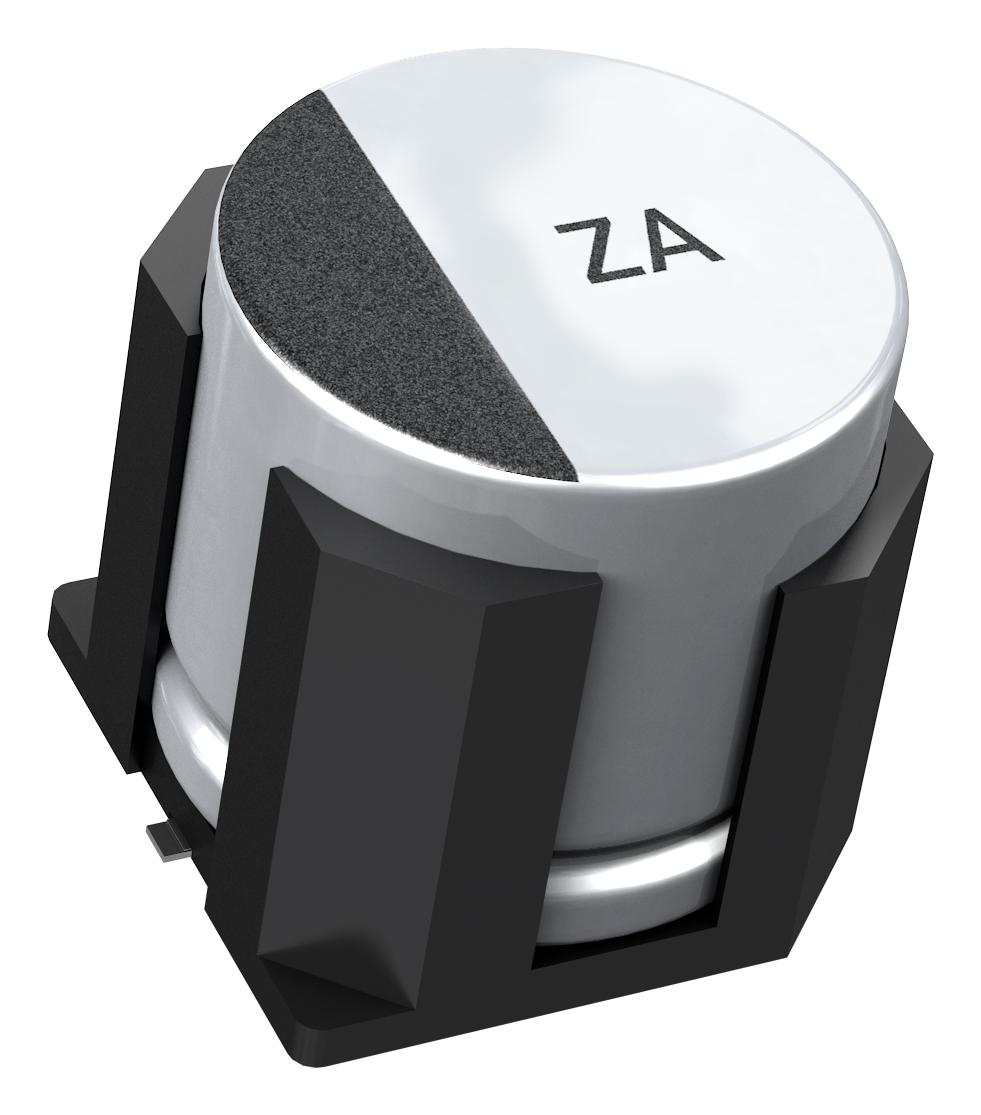

Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Part Number EEHZA1E470V Online
Discover the reliability and high performance of Panasonic conductive polymer hybrid aluminum electrolytic capacitors. Designed for demanding applications, these surface-mount components offer low ESR, high ripple current, and excellent thermal stability. With an endurance of 10,000 hours at 105°C, they are suitable for vibration-proof and high-voltage environments up to 80V DC. These RoHS and AEC-Q200 compliant capacitors ensure long-term stability, consistent capacitance retention within +30%, making them ideal for advanced electronic designs requiring dependable, high-quality components.
Buy Panasonic EEHZA1E470V now and ensure reliable performance with high ripple current and long endurance at elevated temperatures.
Frequently Asked Questions
Where can I buy Panasonic EEHZA1E470V?
You can click on the BUY or RFQ button to purchase EEHZA1E470V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHZA1E470V?
You can download the EEHZA1E470V datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHZA1E470V?
Panasonic
