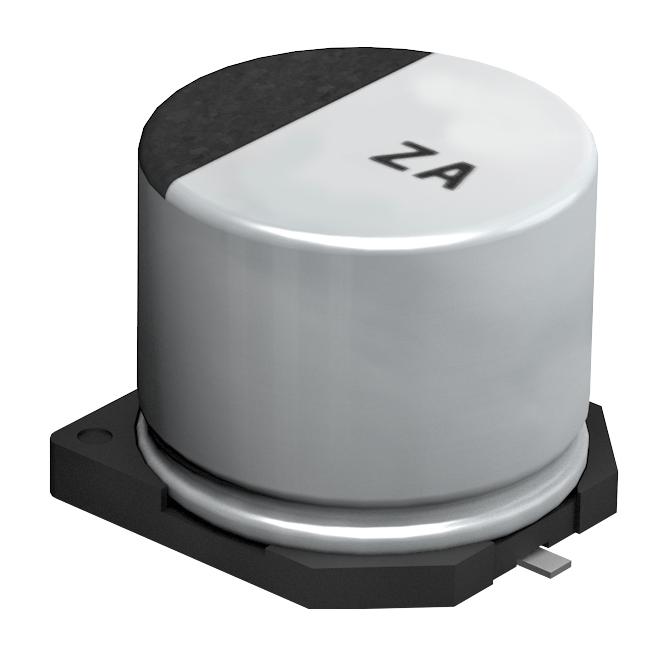

Panasonic EEHZA1E680XP Hybrid Aluminum Capacitor
These Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors are surface mount, high-temperature, low ESR, and high ripple current. Enduring up to 10,000 hours at 105°C, they feature a V type design suitable for high voltage applications up to 80V DC, with excellent stability across temperature and frequency variations. Compliant with RoHS and AEC-Q200 standards, they are vibration-proof upon request, suited for demanding electronic circuits requiring reliable power filtering and energy storage in compact, surface-mount packages.
Panasonic EEHZA1E680XP Hybrid Aluminum Capacitor Specifications:
- Category temperature range: -55°C to +105°C
- Rated voltage range: 25 V.DC to 80 V.DC
- Capacitance range: 10 μF to 330 μF
- Capacitance tolerance: +20% (120 Hz / +20°C)
- Endurance: 10,000 hours at 105°C with rated ripple current
- Leakage current: 0.01 CV or 3 μA (whichever is greater) after 2 minutes
- Dissipation factor (tan δ): specified per characteristics list
- Size code examples: D, D8, F, G with dimensions around 5.8-10.5 mm
- ESR after endurance: within 200% of initial limit at 100 kHz
- RoHS compliant, vibration-proof upon request, compliant with AEC-Q200
Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Part Number EEHZA1E680XP Online
Purchase Panasonic hybrid aluminum capacitors online for high endurance, low ESR, and high ripple current suitable for industrial and automotive applications. These surface-mount capacitors offer excellent thermal stability and are RoHS compliant, ensuring safety and environmental standards. Ideal for power filtering, energy storage, and vibration-proof designs, they are available in various voltage and capacitance ratings. By buying online, you access fast delivery, authentic products, and technical support, making your project more reliable and efficient.
Buy Panasonic EEHZA1E680XP now and experience reliable high-temperature performance with low ESR in demanding electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic EEHZA1E680XP?
You can click on the BUY or RFQ button to purchase EEHZA1E680XP from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHZA1E680XP?
You can download the EEHZA1E680XP datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHZA1E680XP?
Panasonic
