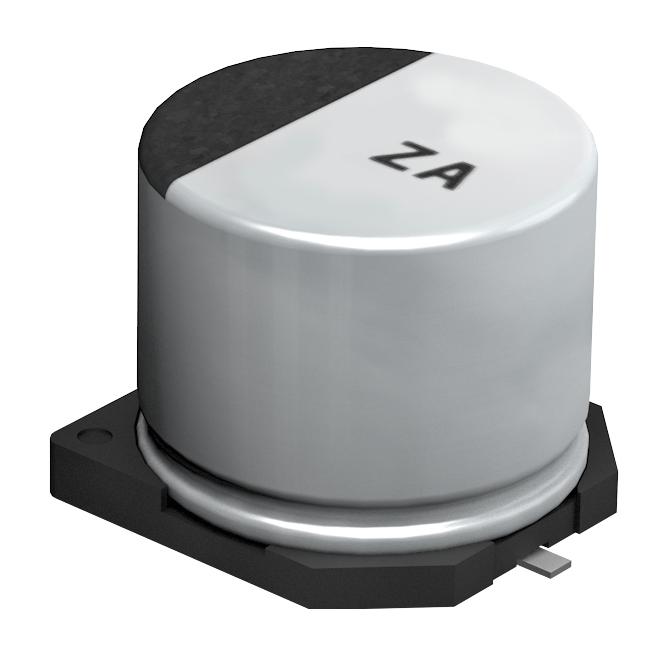

Panasonic EEHZA1V330P Conductive Polymer Aluminum Capacitor
These high-reliability, conductive polymer hybrid aluminum electrolytic capacitors are surface-mount, designed for demanding industrial applications. Operating from -55°C to +105°C, they offer low ESR, high ripple current, and endurance of 10,000 hours at 105°C. Suitable for high voltage applications up to 80V DC, they feature excellent capacitance stability (+30%) and are compliant with RoHS and AEC-Q200 standards. These vibration-proof capacitors are ideal for use in electronics requiring stable performance, durability, and compact size, including automotive and industrial equipment.
Panasonic EEHZA1V330P Conductive Polymer Aluminum Capacitor Specifications:
- Operating temperature range: -55°C to +105°C
- Rated voltage: 25V DC to 80V DC
- Capacitance: 10 µF to 330 µF
- Capacitance tolerance: +20% at 120Hz / +20°C
- Endurance: 10,000 hours at 105°C with rated ripple current
- Vibration-proof: available upon request
- RoHS and AEC-Q200 compliant
- Dissipation factor and ESR: within initial limits after testing
- Size codes: D, D8, F, G with various dimensions
- Leakage current: within initial limit after tests
- Shelf life and storage stability: meets endurance limits after storage at +105°C for 1000 hours
- Built to withstand reflow soldering, compatible with high-temperature reflow profiles
- Features: low ESR, high ripple current, stable capacitance, vibration-proof options
Buy the Panasonic EEHZA1V330P – Reliable Conductive Polymer Aluminum Capacitor for Industrial Applications
Purchase Panasonic EEHZA1V330P online today and benefit from high-performance, vibration-proof aluminum electrolytic capacitors designed for demanding industrial applications. These surface-mount components operate efficiently across a wide temperature range from -55°C to +105°C, offering low ESR, high ripple current, and long endurance of 10,000 hours at 105°C. Suitable for high voltage environments up to 80V DC, they provide stable capacitance with minimal change (+30%) over time. Fully compliant with RoHS and AEC-Q200, these capacitors ensure durability and reliability for automotive, industrial, and electronic projects, all available for quick and easy online purchase.
Buy Panasonic EEHZA1V330P now and experience unmatched reliability and high ripple current performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Panasonic EEHZA1V330P?
You can click on the BUY or RFQ button to purchase EEHZA1V330P from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHZA1V330P?
You can download the EEHZA1V330P datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHZA1V330P?
Panasonic
