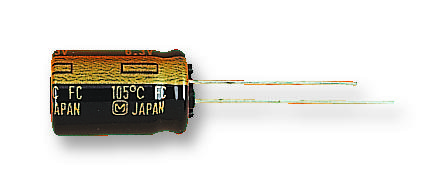

Panasonic EEUFC1H561S Aluminum Electrolytic Capacitor
Panasonic FC series aluminum electrolytic capacitors are radially leaded components designed for high endurance at 105°C, offering low impedance, and meeting AEC-Q200 standards. Suitable for power supplies and industrial applications, these capacitors feature a wide capacitance range from 2.2 UF to 15000 UF, with voltage ratings from 6.3 V.DC to 100 V.DC. They are compliant with RoHS directives, ensuring environmentally friendly performance with reliable long-term stability and high ripple current handling for demanding electronic circuits.
Panasonic EEUFC1H561S Aluminum Electrolytic Capacitor Specifications:
- Category Temp. Range: -55°C to +105°C
- Rated WV. Range: 6.3 V.DC to 100 V.DC
- Nominal Cap. Range: 2.2 UF to 15000 UF
- Capacitance Tolerance: +20% (120 H2/+20°C)
- DC Leakage Current: |< 0.01 CV or 3 (UA) after 2 minutes
- Endurance: 105°C 1000 h to 5000 h at specified voltages
- Dimensions: Various (e.g., diameter 4 mm to 35.5 mm, length 15 mm to 40 mm)
- Impedance: Low impedance at 100 kHz
- Ripple Current: Specified per model, corrected for frequency
- Compliance: RoHS, AEC-Q200 qualified
Buy the Panasonic Series FC Aluminum Electrolytic Capacitors: EEUFC1H561S
Purchase Panasonic EEUFC1H561S aluminum electrolytic capacitor online today, designed for high endurance at 105°C, low impedance, and wide capacitance ranges. Suitable for power supplies, industrial electronics, and demanding applications, these RoHS-compliant capacitors offer long-lasting durability, high ripple current handling, and stability over extended service life. Shop now to ensure your electronic projects benefit from proven quality, reliable performance, and fast online purchase options for instant deployment in your power circuits and electronic assemblies.
Get Panasonic EEUFC1H561S today—built for high endurance and reliable operation in demanding circuits.
Frequently Asked Questions
Where can I buy Panasonic EEUFC1H561S?
You can click on the BUY or RFQ button to purchase EEUFC1H561S from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFC1H561S?
You can download the EEUFC1H561S datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFC1H561S?
Panasonic
