Panasonic EEUFC1J102U Electrolytic Capacitor
The Panasonic FC series capacitors are automotive-grade, radial leaded, polarized aluminium electrolytic capacitors designed for high-reliability applications. They feature capacitance values ranging from 2.2μF to 15,000μF and are suitable for uses requiring ultra-low ESR, high ripple current capability, and long lifespan in a compact form factor. These capacitors comply with automotive industry standards (AEC-Q200), with rated voltages between 6.3V DC and 100V DC. They have a tolerance of ±20% and an endurance of 1,000 to 5,000 hours at 105°C, with an operating temperature range from -55°C to 105°C.
Panasonic EEUFC1J102U Electrolytic Capacitor Specifications:
- Category Temp. Range: -55 °C to +105 °C
- Rated Voltage Range: 6.3 V.DC to 100 V.DC
- Capacitance Range: 2.2 μF to 15,000 μF
- Capacitance Tolerance: +20% (120H2/+20°C)
- DC Leakage Current: < 0.01 CV or 3 (UA) After 2 minutes (Whichever is greater)
- Endurance: 1,000 to 5,000 hours at 105°C
- Operating Temperature Range: -55°C to +105°C
- Compliance: AEC-Q200 qualified, ROHS compliant
- Impedance at 100 kHz: Varies according to voltage and capacitance
- Rated Ripple Current: High capacity for high ripple applications, detailed in datasheets
- Dimensions and lead pitch vary by model, typically with lead spacing around 5 mm or 7.5 mm
- Flammability: UL 94V-0

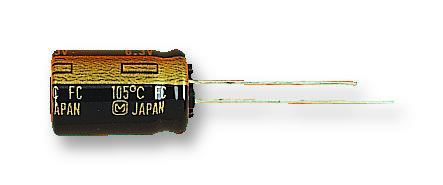

Buy the Panasonic Series FC Automotive Capacitors: EEUFC1J102U
Purchase the Panasonic FC series electrolytic capacitor EEUFC1J102U online now for precise high ripple current capacity and long-term durability. These automotive-grade, radial leaded capacitors offer excellent reliability, low ESR, and a wide temperature range from -55°C to +105°C, making them ideal for demanding applications like automotive, industrial, and power supply systems. With a rated voltage of 10V and capacitance of 1000μF, they meet strict industry standards (AEC-Q200) and are ROHS compliant. Buying online guarantees fast delivery, quality assurance, and technical support for your critical projects.
Order your Panasonic Series FC EEUFC1J102U advanced electrolytic capacitor today and ensure long-lasting, reliable operation in your high-performance projects.
Frequently Asked Questions
Where can I buy Panasonic EEUFC1J102U?
You can click on the BUY or RFQ button to purchase EEUFC1J102U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFC1J102U?
You can download the EEUFC1J102U datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFC1J102U?
Panasonic
