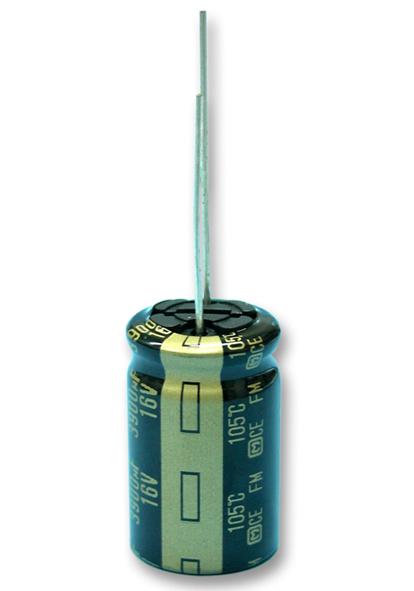

Panasonic EEUFM0J561 Aluminum Electrolytic Capacitor
The FM series radial lead aluminum electrolytic capacitor offers high reliability, low impedance, and high ripple current capabilities. It is ideal for high-reliability applications such as industrial instruments. The capacitor features a rated voltage range of 6.3 to 50V DC and a nominal capacitance range from 22µF to 6800µF. It provides an endurance of 2000 to 7000 hours at 105°C, with impedance levels 40 to 70% lower than the FC series, ensuring long service life and stability in demanding environments.
Panasonic EEUFM0J561 Aluminum Electrolytic Capacitor Specifications:
- Case size: 6.3x11.2 mm to 16x35 mm
- Category Temperature Range: -40°C to +105°C
- Rated Voltage Range: 6.3 V to 50 V DC
- Nominal Capacitance Range: 22µF to 6800µF
- Capacitance Tolerance: +20 %
- DC Leakage Current: <0.01 CV (uA) after 2 minutes
- Endurance: 2000 to 7000 hours at +105°C
- Impedance: 40% to 70% less than FC series
- Ripple Current Correction Factors: 0.45 to 1.00 across various frequencies
- Physical Dimensions: dia. 6.3 to 16 mm, length 11.2 to 35 mm, lead dia. 0.5 to 0.8 mm
- RoHS compliant
Buy the Panasonic Series FM Aluminum Electrolytic Capacitors: EEUFM0J561
Purchase the Panasonic FM Series aluminum electrolytic capacitor online for high reliability and excellent performance. With low impedance, high ripple current capacity, and endurance up to 7000 hours at 105°C, this capacitor is ideal for industrial and high-reliability applications. Its broad voltage range of 6.3 to 50V DC and capacitance from 22µF to 6800µF ensure versatility. Buy online today to secure a durable component that guarantees long-term stability and performance in your electronic designs.
Get Panasonic FM Series EEUFM0J561 today—built for high reliability, low impedance, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic EEUFM0J561?
You can click on the BUY or RFQ button to purchase EEUFM0J561 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFM0J561?
You can download the EEUFM0J561 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFM0J561?
Panasonic
