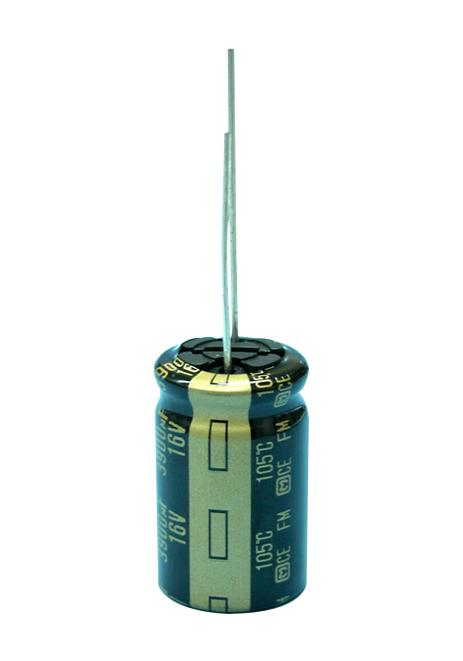

Panasonic EEUFM1C681 Electrolytic Capacitors
The Panasonic FM series capacitors are polarized aluminum electrolytic capacitors with a radial lead design. They feature capacitance values ranging from 22 microfarads to 6800 microfarads. These capacitors are ideal for applications requiring ultra-low ESR, high ripple current capability, and long operational life in a compact form factor. They offer high reliability, with rated voltages from 6.3V DC to 50V DC, and a tolerance of ±20%. The endurance spans from 2,000 to 7,000 hours at 105°C, and they operate effectively within a temperature range of -40°C to 105°C.
Panasonic EEUFM1C681 Electrolytic Capacitors Specifications:
- Capacitance range: 22 UF to 6800 UF
- Rated voltage range: 6.3 V to 50 V
- Capacitance tolerance: ±20%
- Endurance: 2000 h to 7000 h at 105°C
- Operating temperature: -40°C to +105°C
- Leakage current: IS 0.01 CV (WA) after 2 minutes
- Dissipation factor (tan δ): 0.22 to 0.10 depending on model
- Case size: Various sizes (e.g., 8x11.5mm, 8x15mm, 10x20mm, etc.)
- Lead length: 11mm to 20mm depending on series
- RoHS compliant, reliable long life, suitable for high ripple applications
- Pressure relief vent for safety, operating with DC ripple current
Buy the Panasonic EEUFM1C681 – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Enhance your electronic projects with Panasonic electrolytic capacitors. Perfect for high ripple, long life, reliable operation from -40°C to 105°C, rated 6.3V to 50V. These capacitors provide excellent performance in compact sizes and feature long endurance of up to 7000 hours at 105°C. Ideal for power supplies, industrial equipment, and audio-visual systems, they ensure stability, safety, and durability, making your designs more robust and dependable. Purchase online to get authentic, RoHS-compliant Panasonic quality directly to your workspace.
Buy Panasonic EEUFM1C681 now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy Panasonic EEUFM1C681?
You can click on the BUY or RFQ button to purchase EEUFM1C681 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFM1C681?
You can download the EEUFM1C681 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFM1C681?
Panasonic
