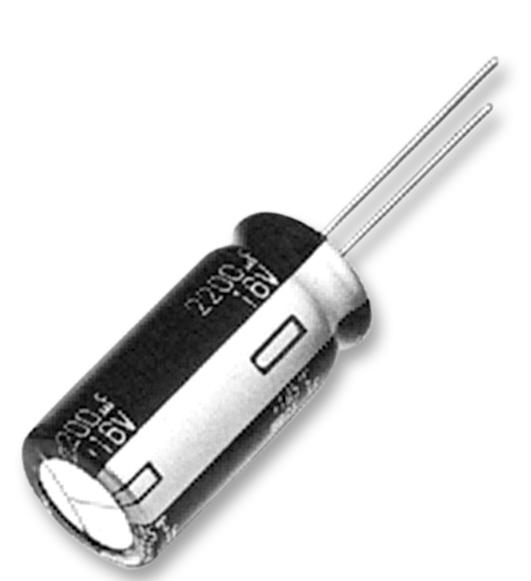

Panasonic EEUFP1E102B Aluminum Electrolytic Capacitor
The Panasonic FP-A series radial lead aluminum electrolytic capacitors are high-reliability, RoHS and AEC-Q200 compliant components designed for electronic circuits requiring stable performance. With a temperature range of -55°C to +105°C, they offer large capacitance values up to 2000 μF and rated voltages of 25V to 35V. These capacitors feature low ESR, high ripple current tolerance, and endurance of up to 5000 hours at 105°C. They are suitable for power supplies, audio equipment, and industrial applications, providing long-term stability and safety under demanding conditions.
Panasonic EEUFP1E102B Aluminum Electrolytic Capacitor Specifications:
- Category temperature range: -55°C to +105°C
- Rated voltage range: 25 V to 35 V
- Capacitance range: 510 μF to 2000 μF
- Capacitance tolerance: ±20% (120 Hz / +20°C)
- Leakage current: 0.01 CV (WA) after 2 minutes
- Endurance: 4000 h at 105°C for 10 mm size, 5000 h for larger sizes
- Dissipation factor (tan δ): 0.14 at 120 Hz / +20°C, 0.12 at 1 kHz / +20°C
- Ripple current (100 kHz): 2500-4000 mA rms depending on size
- Shelf life: 1000 h at +105°C with no voltage before testing, max shelf 42 months from manufacturing date
- Physical size example: 10 x 16 mm, 12.5 x 20 mm, 12.5 x 25 mm; lead length options 5.0 mm
Buy the Panasonic Series FP-A High-Performance Aluminum Capacitors: EEUFP1E102B
Secure your electronic projects with Panasonic Series FP-A aluminum electrolytic capacitors. Designed for durability, these capacitors offer high capacitance, low ESR, and excellent ripple current handling. Perfect for power supplies, audio, and industrial circuits, they deliver reliable performance at temperatures from -55°C to +105°C. Easy to install and compliant with RoHS and AEC-Q200 standards, order online today to benefit from fast delivery and superior quality that ensures your equipment's safety and efficiency.
Order your Panasonic Series FP-A 2000 μF 35 V aluminum electrolytic capacitor today and ensure long-lasting stability for your electronic projects.
Frequently Asked Questions
Where can I buy Panasonic EEUFP1E102B?
You can click on the BUY or RFQ button to purchase EEUFP1E102B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFP1E102B?
You can download the EEUFP1E102B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFP1E102B?
Panasonic
