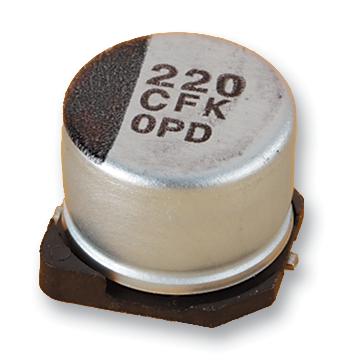

Panasonic EEVFK1K331M Aluminum Electrolytic Capacitor
Panasonic's EEV-FK1K331M series capacitors are surface mount devices designed for a wide range of industrial applications. These capacitors offer enhanced endurance up to 105°C and exhibit low impedance characteristics, improving circuit efficiency. The vibration-proof option ensures reliable operation in demanding environments. They are AEC-Q200 compliant and RoHS compliant, making them suitable for automotive and environmentally conscious designs. The compact size contributes to space-saving designs, while the marking system allows for easy identification and traceability.
Panasonic EEVFK1K331M Aluminum Electrolytic Capacitor Specifications:
- Endurance: 105 °C 2000 h to 5000 h
- Low impedance: 40 % to 60 % less than FC series
- Miniaturized: 30 % to 50 % less than FC series
- Vibration-proof: 30G guaranteed (ø6.3 ≦)
- AEC-Q200 compliant: Yes
- RoHS compliant: Yes
- Temperature range: –55 °C to +105 °C
- Rated voltage range: 6.3 V to 100 V
- Capacitance range: 3.3μF to 6800μF
- Capacitance tolerance: ±20 % (120 Hz/+20 °C)
- Leakage current: I ≦ 0.01 CV or 3(μA) After 2 minutes
- Dissipation factor: Please see the attached characteristics list
- Correction factor for ripple current: {'50,60 (Hz)': '0.70', '120 (Hz)': '0.75', '1 k (Hz)': '0.90', '10 k (Hz)': '0.95', '100 k to': '1.00'}
- Capacitance change: Within ±30 % of the initial value (Suffix “G” is 35 %)
- Dissipation factor (tan δ): ≦ 200 % of the initial limit (Suffix “G” is 300 %)
Buy the EEV-FK1K331M PANASONIC Aluminum Electrolytic Capacitor | myMectronic
Purchase the Panasonic EEV-FK1K331M Aluminum Electrolytic Capacitor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic EEVFK1K331M?
You can click on the BUY or RFQ button to purchase EEVFK1K331M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEVFK1K331M?
You can download the EEVFK1K331M datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEVFK1K331M?
Panasonic
