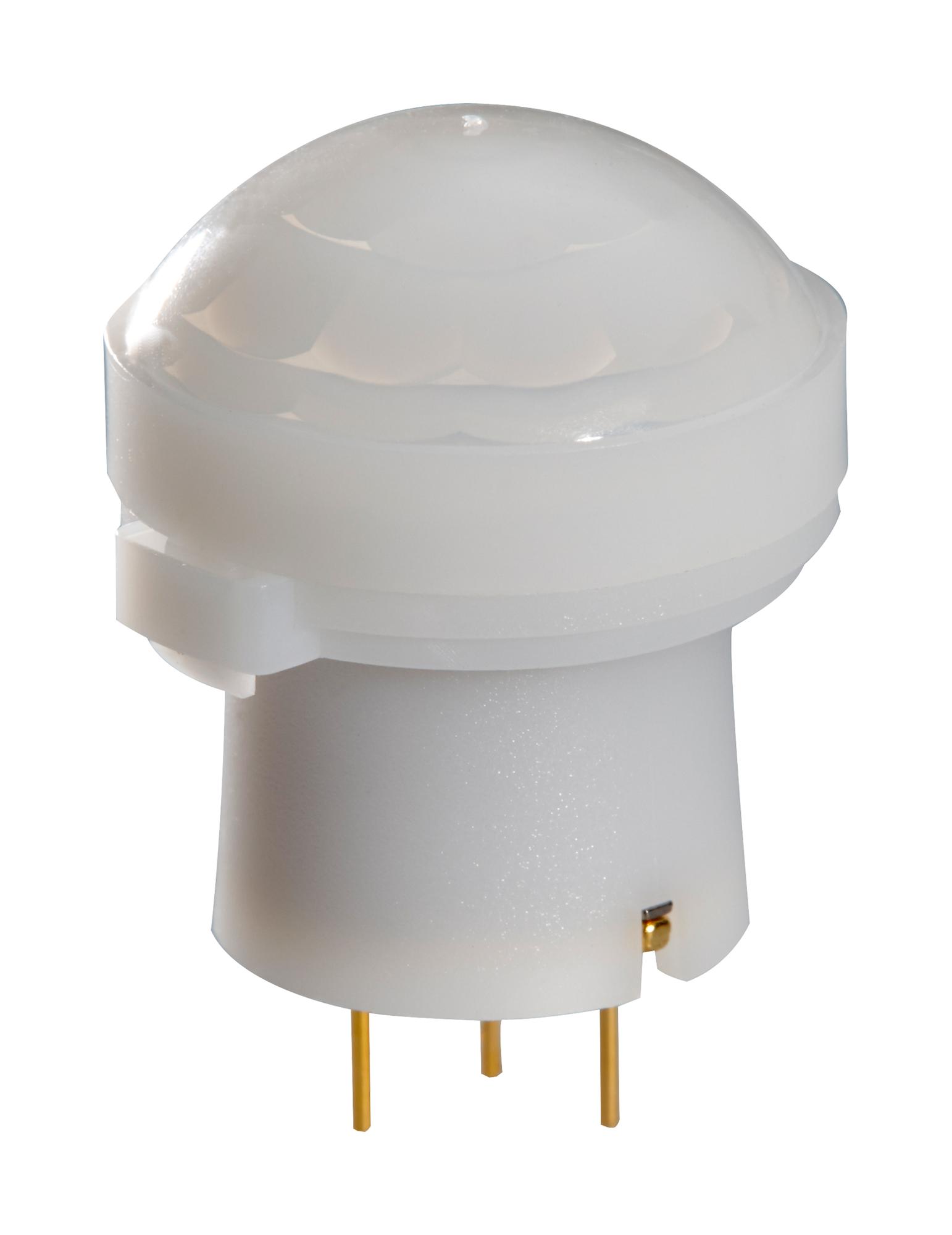

Panasonic EKMB1293111 Motion Sensor
The EKMB1293111 is a highly efficient, low-current consumption motion sensor ideal for battery-powered smart home and wireless applications. Featuring differential input circuitry for high noise resistance, it offers standard and long-distance detection modes with lensless or lens-equipped options. Suitable for wall installation, its detection range extends up to 12 meters with a 102° x 92° field of view, and it can detect human movement with a target size of approximately 700x250mm. The device operates on 2.3V to 4.5V, with ultra-low standby current of 2 microamps, making it perfect for energy-conscious automation systems.
Panasonic EKMB1293111 Motion Sensor Specifications:
- Power Supply Voltage: 2.3V to 4.5V
- Standby Current: 2uA
- Detection Range: Up to 12m
- Detection Angle: 102° x 92°
- Detection Method: Infrared, human body targeting
- Detection Targets: Human body approx. 700x250mm
- Temperature Range: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Lens Color Options: White, Black, Pearl white
- Detection Type: Standard detection mode
- Response Time: Approximately 25 seconds for circuit stabilization
- Detection Field of View: 102° x 92°
- Detection Sensitivity: Higher than 4°C temperature difference
- Mounting: Wall installation compatible
- Operating Conditions: No frost or condensation, ambient temperature 25°C
- Output: Digital signals with current capacity up to 100μA during detection
- Environmental Certifications: RoHS compliant
Buy the Ekmb1293111 Reliable Motion Sensor for Industrial Applications
Enhance your smart home or industrial automation systems with the Ekmb1293111 motion sensor. Its ultra-low power consumption of just 2 microamps in standby mode ensures extended battery life. Featuring detection ranges up to 12 meters and a wide 102° x 92° field of view, it reliably detects human movement with precise sensitivity. Easy wall mounting and high noise resistance make this sensor ideal for energy-efficient, wireless applications. Invest now to benefit from advanced detection technology and seamless integration into your automation system.
Buy Ekmb1293111 now and experience unmatched reliability and performance for your smart home or wireless sensing needs.
Frequently Asked Questions
Where can I buy Panasonic EKMB1293111?
You can click on the BUY or RFQ button to purchase EKMB1293111 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EKMB1293111?
You can download the EKMB1293111 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EKMB1293111?
Panasonic
