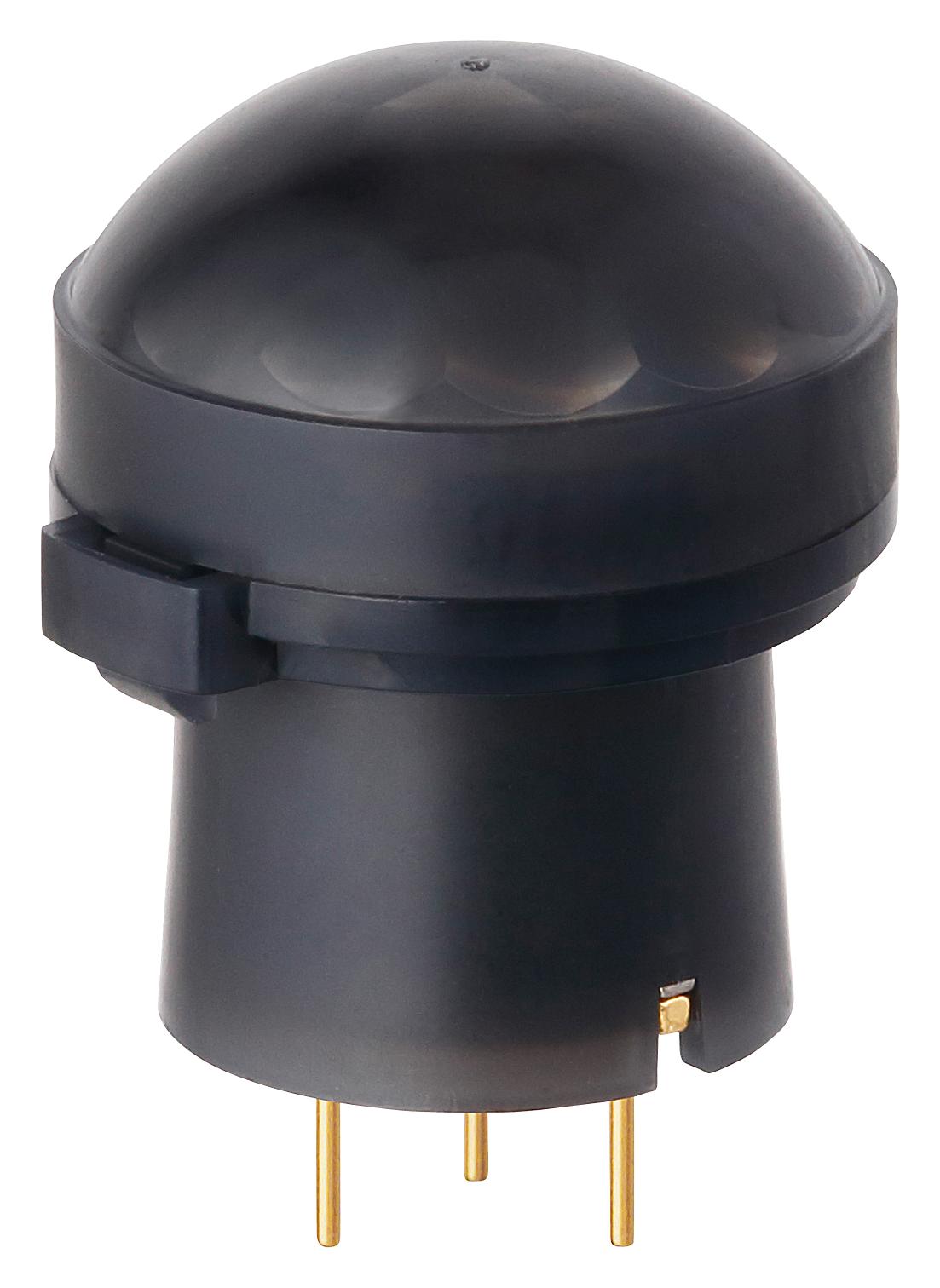

Panasonic EKMB1391112K PIR Motion Sensor
The PIR motion sensor comes from Panasonic's WL series, designed for slight motion detection with digital output capabilities. It features a detection range up to 4 meters with a 97° horizontal and vertical detection angle. Operating on 3VDC, it is suitable for various applications needing precise motion sensing indoors or outdoors, with robust electrical and environmental specifications, including temperature tolerance from -20°C to +60°C. Mountable easily with clear wiring diagrams, it ensures reliable operation with safety and handling instructions provided for optimal performance and longevity.
Panasonic EKMB1391112K PIR Motion Sensor Specifications:
- Detection Range: 2.5m to 4m, Max 4m
- Detection Angle: Horizontal and Vertical 97° (+48.5°)
- Detection Zones: 112
- Power Supply Voltage: 2.3V to 4.5V DC
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Current Consumption: Max 12μA
- Output Current: Max 100pA
- Output Voltage: Vdd - 0.5V to Vdd
- Detection Performance depends on ambient temperature and target movement
- Mounting: Recommended for chassis height above 4.5mm
- Size: 45mm diameter, 16.6mm height
- Humidity Range: 15-85% Rh (avoid condensation or freezing)
- Certifications: Not specified
- Handling: Do not solder above 350°C, avoid liquids, static damage can occur
- Environmental Resistance: Not waterproof or dustproof, avoid corrosive environments
Buy the Panasonic Series WL PIR Motion Sensor: EKMB1391112K
Order the Panasonic PIR motion sensor from the WL series EKMB1391112K today and enhance your security or automation system with high-precision motion detection. This sensor offers a detection range up to 4 meters with a 97° angle, ideal for indoor or outdoor use. It operates at 3VDC with minimal power consumption and features robust environmental specifications suitable for various installation environments. Easy to mount and wired correctly, this sensor ensures reliable detection with safety precautions to maximize lifespan. Purchase now to improve your automated security solutions with proven Panasonic reliability.
Get Panasonic WL series EKMB1391112K today—built for precise motion detection in indoor and outdoor security systems.
Frequently Asked Questions
Where can I buy Panasonic EKMB1391112K?
You can click on the BUY or RFQ button to purchase EKMB1391112K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EKMB1391112K?
You can download the EKMB1391112K datasheet or visit the Panasonic website for support.
Who is the manufacturer of EKMB1391112K?
Panasonic
