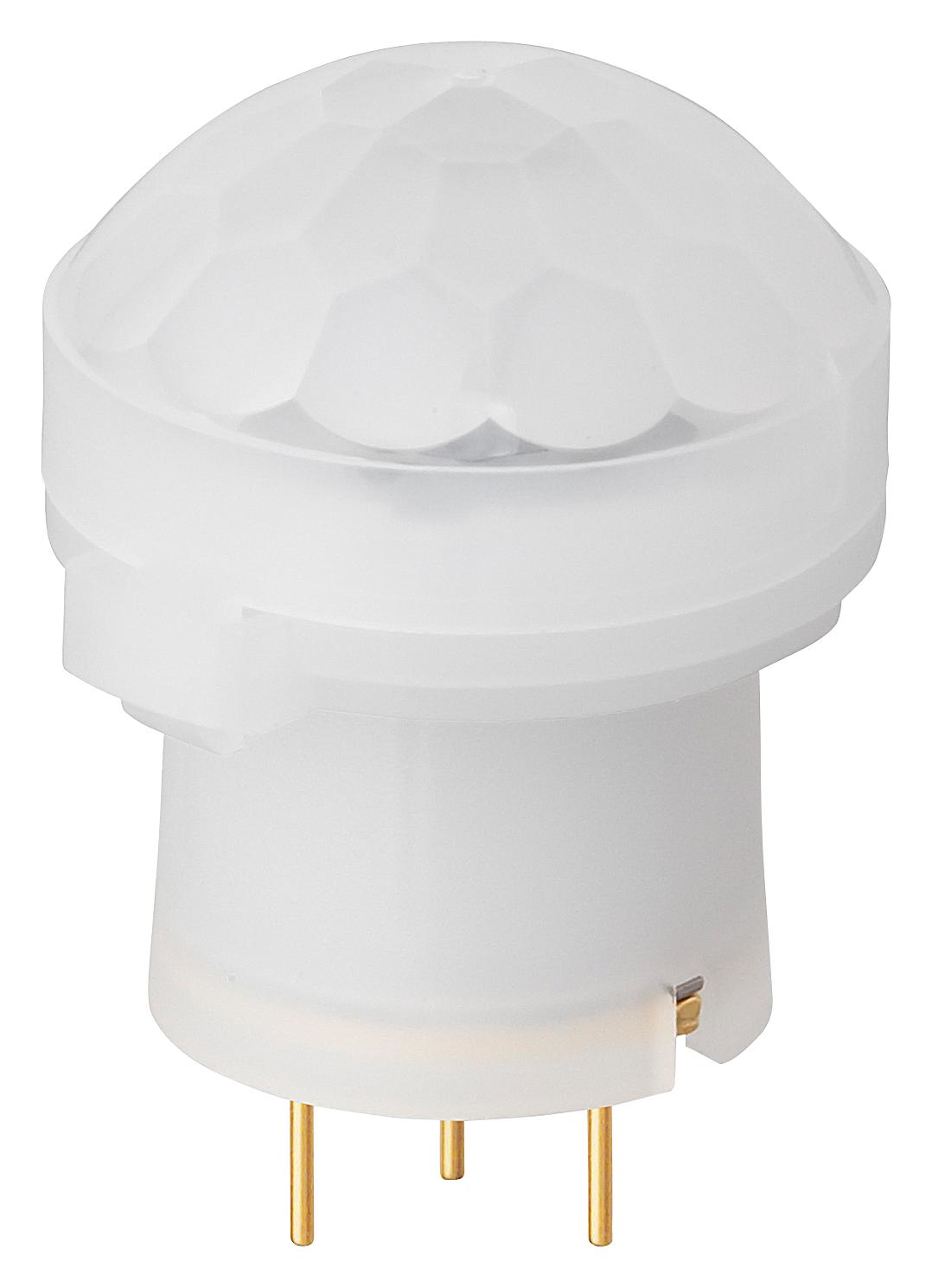

Panasonic EKMC2691111K PIR Motion Sensor
The PIR motion sensor detects human presence using pyroelectric infrared technology with a detection range of 2.5 meters and a horizontal and vertical detection angle of 97°. Its small form factor suits indoor automation, security, and lighting control systems. Operates at 5V DC, with low power consumption and analog output for easy integration. The sensor features a detection sensitivity of +0.22V, a temperature tolerance from -20°C to +60°C, and requires proper mounting and wiring to ensure reliable operation. It’s designed for applications requiring precise motion detection within limited environments.
Panasonic EKMC2691111K PIR Motion Sensor Specifications:
- Detection Range: 2.5 meters
- Detection Angles: Horizontal 97°, Vertical 97°
- Operating Voltage: 3.0~5.5 VDC
- Usable Ambient Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Detection Sensitivity: +0.22V
- Current Consumption: 170-350 pA
- Analog Output High Vh: 1.9V
- Analog Output Low Vl: 0.2V
- Detection Zone: Polarized, target concept is human head (around 200x200mm)
- Detection Range Flexibility: Can exceed 2.5m depending on target and environment
- Detection Speed: 0.5 m/s
- Power Supply Voltage: -0.3 to 7.0 VDC
- Material: Polyethylene lens, small PCB size
- Mounting: Recommended more than 4.5mm above chassis
- Certifications: Not specified
- Additional Features: Low noise Vn, stable circuit, pulse timing around 30 seconds
Buy the Panasonic EKMC2691111K – Reliable PIR Motion Sensor for Industrial Applications
Order the Panasonic EKMC2691111K PIR motion sensor online now for precise human detection in security, automation, and smart lighting projects. With a detection range of 2.5 meters and wide detection angles of 97°, it integrates easily into various systems operating at 5V DC with low power consumption. Its compact size makes it ideal for indoor applications, including building automation and security devices. Ensure reliable operation by mounting the sensor correctly and wiring it properly. Purchase today for quick delivery and expert support.
Get Panasonic EKMC2691111K today—crafted for precise human detection in automation and security systems.
