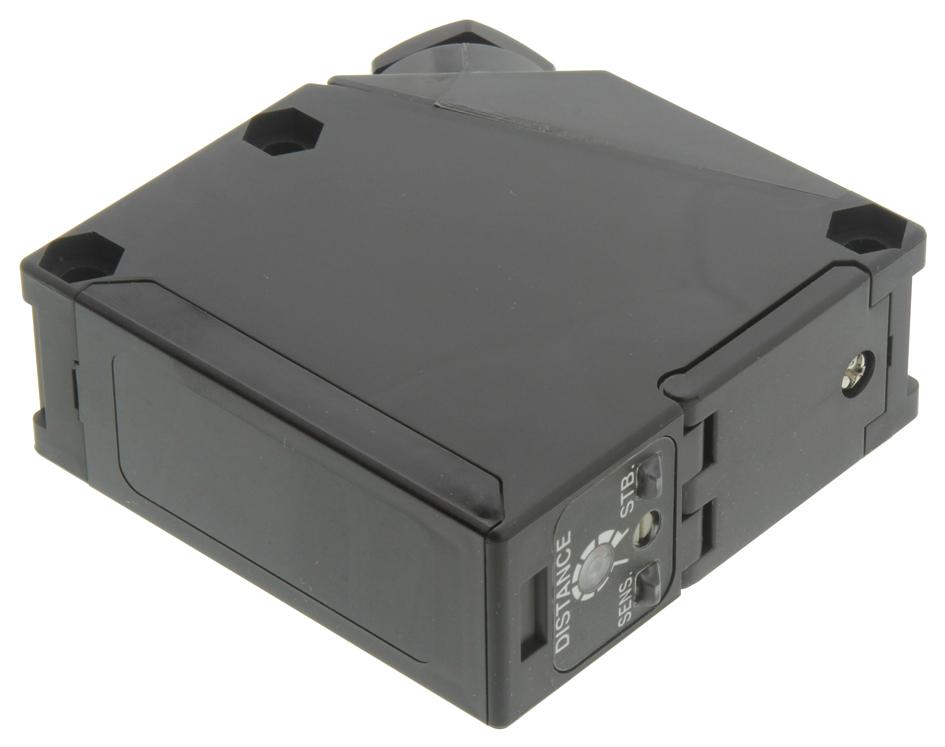

Panasonic EQ501 Reflective Photoelectric Sensor
The EQ-501 is a reflective photoelectric sensor equipped with relay contact output. It offers long-range sensing up to 2.5 meters with stable detection unaffected by the color or gloss of the target. The sensor features an easy-to-adjust mechanical dial with an indicator and includes a stability indicator for reliable operation. With an IP67 enclosure, it is suitable for use in environments where water may splash, and it operates within a temperature range of -20°C to 55°C. Ideal for sensing and instrumentation applications.
Panasonic EQ501 Reflective Photoelectric Sensor Specifications:
- Sensing Range: up to 2.5 meters (8.202 feet)
- Detection unaffected by color or gloss of the target
- Enclosure: IP67 (water-resistant)
- Operating Temperature Range: -20°C to 55°C
- Output: Relay contact
- Power Supply: 12 to 240 V AC/DC ±10%
- Response Time: 20 ms or less
- Hysteresis: 10% or less of operation distance
- Material: Cold rolled carbon steel (SPCC)
- Mounting: Optional foot/ back angled mounting bracket MS-EQ5-01
- Indication: Operation and stability indicators with mechanical dial
- Wiring: Screw terminal connection
- Cable Compatibility: Suitable for round cable 0.9 to 11 mm diameter
- Weight: Approx. 100 g
- Protection: Water splash resistant IP67
- Shock Resistance: 500 m/s², 3-axis for three times each
Buy the Buy Sensor Technologies Reflective Photoelectric Sensor Part Number EQ501 Online
Purchase the EQ-501 reflective photoelectric sensor online today and enhance your sensing applications with reliable, long-range detection up to 2.5 meters. Its IP67 rated enclosure ensures durability in wet or dirty environments, while the adjustable mechanical dial allows for easy setup. The stable detection unaffected by surface gloss or color makes it ideal for industrial automation, packaging, and safety systems. Order now to benefit from fast shipping, technical support, and quality assurance.
Get EQ-501 sensor today—designed for long-range, stable detection even in harsh environments and featuring IP67 water resistance.
Frequently Asked Questions
Where can I buy Panasonic EQ501?
You can click on the BUY or RFQ button to purchase EQ501 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EQ501?
You can download the EQ501 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EQ501?
Panasonic
