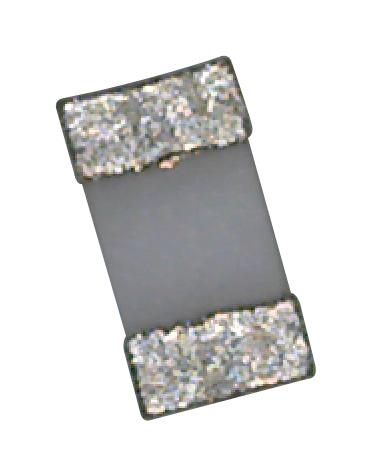

Panasonic ERA2AEB820X High Reliability Metal Film Resistors
The Panasonic ERA series Type 2A resistors are high-reliability, automotive-grade metal film chip resistors utilizing thin film technology. They cover resistance values from 10 ohms to 100 kilo-ohms in E24 and E96 series. These resistors feature tight tolerance options of ±0.1%, ±0.25%, and ±0.5%, along with temperature coefficients of resistance (TCR) of ±10, ±15, ±25, and ±100 ppm/°C. They are characterized by low current noise, excellent linearity, and stability at high temperatures and humidity. The resistors conform to industry standards including IEC 60115-8, JIS C 5201-8, and EIAJ RC-2133B, and are rated for a maximum power of 63mW at 85°C and 85% relative humidity. They are housed in an EIA 0402 case size and are automotive-qualified under AEC-Q200.
Panasonic ERA2AEB820X High Reliability Metal Film Resistors Specifications:
- Size: 0402 (1.00 x 0.50 mm)
- Power Rating: 63mW at 85°C, 85%RH
- Resistance Range: 10Ω to 100kΩ based on E24 and E96 series
- Tolerance: ±0.1%, ±0.25%, ±0.5%
- Temperature Coefficient of Resistance (TCR): ±10, ±15, ±25, ±100 ppm/°C
- Construction: Metal film (thin film)
- Operating Temperature Range: -55°C to +155°C
- Standards Compliance: IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
- Housing: EIA 0402 chip size
- Application: Automotive, industrial, high reliability electronics
Buy the Panasonic Series ERA High Reliability Metal Film Resistors: ERA2AEB820X
Purchase Panasonic ERA2AEB820X metal film chip resistor online today and ensure high reliability in your electronic applications. Designed for automotive standards, these resistors provide tight tolerance options of ±0.1%, ±0.25%, and ±0.5% with a low TCR of ±10, ±15, ±25, and ±100 ppm/°C for excellent linearity and stability across a wide temperature range. Their compact 0402 size makes them ideal for space-constrained designs. Rated at 63mW at 85°C and 85% RH, they are perfect for high temperature and humidity environments. Enjoy fast, secure online purchase and reliable delivery.
Get Panasonic ERA2AEB820X today—built for high reliability, automotive-grade performance, and precise resistance values.
Frequently Asked Questions
Where can I buy Panasonic ERA2AEB820X?
You can click on the BUY or RFQ button to purchase ERA2AEB820X from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERA2AEB820X?
You can download the ERA2AEB820X datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERA2AEB820X?
Panasonic
