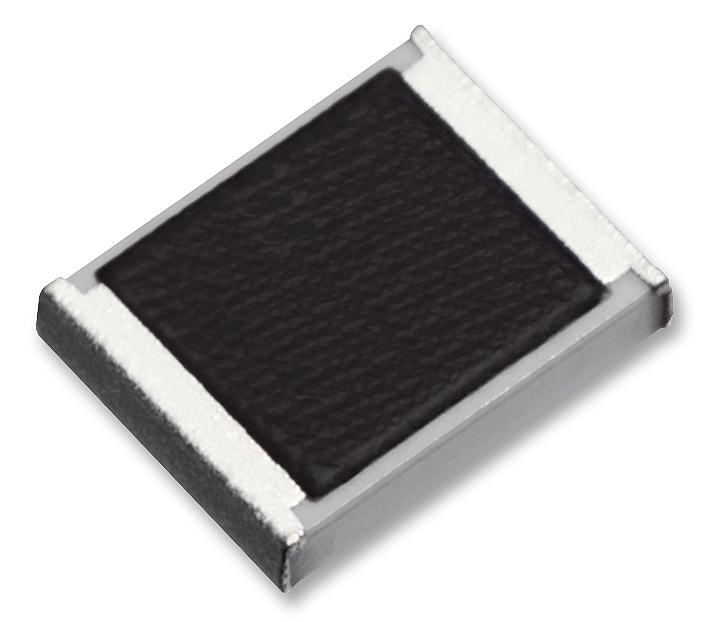

Panasonic ERJ1GEF8661C Precision Thick Film Resistor
Panasonic's ERJ-1GEF8661C is a precision thick film chip resistor engineered for demanding applications requiring high reliability and compact size. Its construction utilizes a metal glaze thick film resistive element and a three-layered electrode, ensuring robust performance. The resistor is suitable for both reflow and flow soldering processes and is available in bulk, taping, and magazine packaging options to accommodate automated placement machines. It's ideal for applications where PCB size reduction and lightweight designs are critical, such as consumer electronics, automotive systems, and industrial equipment.
Panasonic ERJ1GEF8661C Precision Thick Film Resistor Specifications:
- Features: ['Small size and lightweight for PCB size reduction and lightweight products', 'High reliability due to metal glaze thick film resistive element and three layered electrode', 'Matching with placement machines via bulk, taping, and magazine packaging', 'Suitable for both reflow and flow soldering']
- Marking: Four-digit marking of resistance value on resistive element side (except 2R, 3R, 6R, 3E Type)
- Resistance Tolerance: ERJ2R, 3E, 6E, 8E, 14, 12 Series: ±1%; ERJ2R, 3R, 6R Series: ±0.5%
- Reference Standards: IEC 60115-8, JIS C 5201-8
- Power Rating: Varies by type, see ratings table
- Limiting Element Voltage: Varies by type, see ratings table
- Resistance Ranges: Varies by type, see ratings table
- T.C.R.: Varies by type, see ratings table
- Packaging: Standard quantity: Punched (Paper) Taping (4 mm pitch), Embossed Taping (4 mm pitch), Bulk Case
- Dimensions: {'ERJ2R (0402)': '1.00±0.05 x 0.50+0.05 x 0.20±0.10 x 0.25±0.05 x 0.35±0.05 mm, 0.8 g', 'ERJ3R (0603)': '1.60±0.15 x 0.80+0.15 x 0.30±0.20 x 0.30±0.15 x 0.45±0.10 mm, 2 g', 'ERJ6R (0805)': '2.00±0.20 x 1.25±0.10 x 0.40±0.20 x 0.40±0.20 x 0.60±0.10 mm, 4 g', 'ERJ3EK (0603)': '1.60±0.15 x 0.80+0.15 x 0.30±0.20 x 0.30±0.15 x 0.45±0.10 mm, 2 g', 'ERJ6EN (0805)': '2.00±0.20 x 1.25±0.10 x 0.40±0.20 x 0.40±0.20 x 0.60±0.10 mm, 4 g', 'ERJ8EN (1206)': '3.20+0.05 x 1.60+0.05 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm, 10 g', 'ERJ14N (1210)': '3.20±0.20 x 2.50±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm, 16 g', 'ERJ12N (1812)': '4.50±0.20 x 3.20±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm, 27 g', 'ERJ12S (2010)': '5.00±0.20 x 2.50±0.20 x 0.60±0.20 x 0.60±0.20 x 0.60±0.10 mm, 27 g'}
