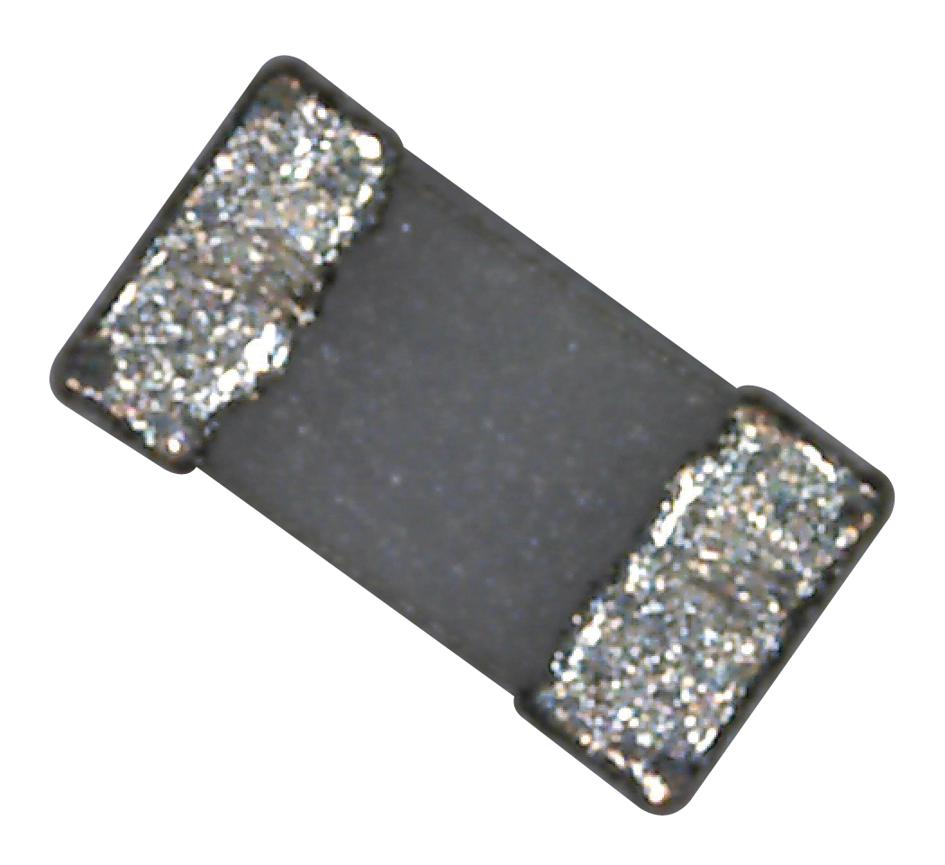

Panasonic ERJ1GNF6800C Precision Chip Resistor
Panasonic's ERJ1GNF6800C precision thick film chip resistor offers high reliability with 1% resistance tolerance. Designed for surface-mount technology, it features a compact size, low resistance variation, and excellent stability suitable for sensitive electronic circuits. Made with a metal glaze thick film resistive element and multiple electrode layers, these resistors are compliant with RoHS standards. Perfect for applications requiring precise resistance values, they support both reflow and flow soldering processes, ensuring robust performance in diverse environments.
Panasonic ERJ1GNF6800C Precision Chip Resistor Specifications:
- Size: 0201 (0.6 x 0.3 mm), 0603 (1.6 x 0.8 mm), 0805 (2.0 x 1.25 mm), 1206 (3.2 x 1.6 mm), 1210 (3.2 x 2.5 mm), 2010 (5.0 x 2.5 mm), 2512 (6.3 x 3.2 mm)
- Power Rating: 0.031 W (0201), 0.1 W (0603), 0.125 W (0805), 0.25 W (1206), 0.5 W (1210), 0.75 W (2010), 1 W (2512)
- Resistance Tolerance: ±1%
- Resistance Values: First three digits are significant figures, last digit indicates zeros; e.g., 6800 = 6.8kΩ
- Resistance Range: from 10Ω to several MΩ depending on series
- Construction: Metal glaze thick film resistive element with multilayer electrodes
- Soldering Methods: Suitable for both reflow and flow soldering
- Standards: RoHS compliant, compliant with IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
Buy the Buy Panasonic Precision Thick Film Chip Resistors Part Number ERJ1GNF6800C Online
Purchase Panasonic ERJ1GNF6800C precision thick film chip resistor online today and benefit from its high reliability and 1% resistance tolerance. Compact and designed for surface-mount applications, this resistor ensures excellent stability and performance in sensitive electronic circuits. Suitable for both reflow and flow soldering, it complies with RoHS standards, making it ideal for modern manufacturing. Whether upgrading existing designs or developing new products, this resistor offers precision, durability, and ease of assembly for any professional electronics project.
Order your Panasonic ERJ1GNF6800C precision thick film chip resistor today and enhance your electronic projects with reliable, high-accuracy performance.
Frequently Asked Questions
Where can I buy Panasonic ERJ1GNF6800C?
You can click on the BUY or RFQ button to purchase ERJ1GNF6800C from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ1GNF6800C?
You can download the ERJ1GNF6800C datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ1GNF6800C?
Panasonic
