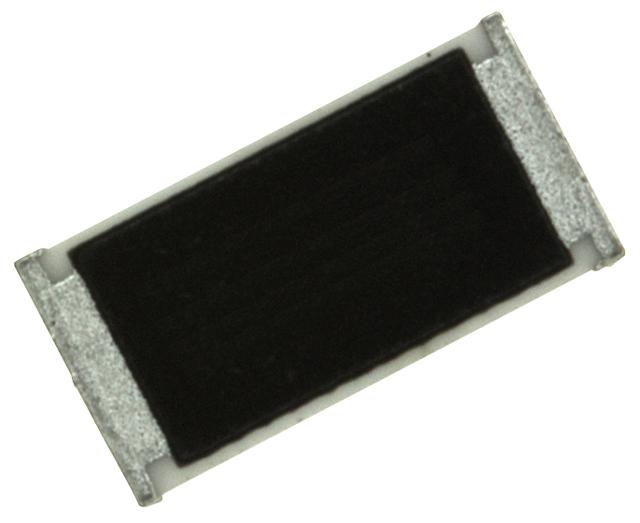

Panasonic ERJ8ENF20R5V Precision Chip Resistor
The Panasonic ERJ series resistors are automotive-grade, precision thick film chip resistors designed for reliable performance in demanding environments. They feature a metal glaze thick film resistive element with three layers of electrodes, ensuring durability and high reliability. Available in a wide range of EIA standard case sizes from 01005 (0.4mm x 1.0mm) to 2512 (6.3mm x 3.2mm), these small and lightweight resistors provide a maximum power rating of 1W. They are compliant with AEC-Q200 automotive standards and come in tolerance levels of ±0.5% and ±1%. The temperature coefficient (TCR) options include ±50, ±100, ±200, and ±300 ppm/°C. Operating temperature ranges are from -55°C to 125°C or -55°C to 155°C. These resistors meet IEC 60115-8, JIS C 5201-8, and EIAJ RC-2134B standards, and are suitable for both reflow and flow soldering processes.
Panasonic ERJ8ENF20R5V Precision Chip Resistor Specifications:
- Case sizes: 01005 to 2512 (0.4mm x 1.0mm to 6.3mm x 3.2mm)
- Power Rating: up to 1 Watt
- Tolerance Levels: ±0.5%, ±1%
- Temperature Coefficient: ±50, ±100, ±200, ±300 ppm/°C
- Operating Temperature Range: -55°C to 125°C or -55°C to 155°C
- Construction: Metal glaze thick film resistive element with three electrode layers
- Standards: IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
- Soldering: Suitable for reflow and flow soldering
- Compliance: RoHS
- Application: Automotive, industrial, precision electronic circuits
Buy the Panasonic ERJ8EN – Reliable Automotive-Grade Thick Film Chip Resistors for Industrial Applications
Purchase the Panasonic ERJ series precision thick film chip resistor online now to benefit from superior reliability and high performance in automotive and industrial circuits. These resistors are designed with metal glaze thick film technology, offering excellent stability, tight tolerance levels of ±0.5% and ±1%, and a wide operating temperature range up to 155°C. With various sizes from 01005 to 2512 and a maximum power rating of 1 watt, they meet international standards such as IEC 60115-8, JIS C 5201-8, and EIAJ RC-2134B. Order today to secure top-tier resistor technology for your projects.
Order your Panasonic ERJ8ENF20R5V series high-quality thick film chip resistor today and ensure durable performance in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ERJ8ENF20R5V?
You can click on the BUY or RFQ button to purchase ERJ8ENF20R5V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ8ENF20R5V?
You can download the ERJ8ENF20R5V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ8ENF20R5V?
Panasonic
