Panasonic ERJ8ENF2204V Precision Thick Film Resistor
The Panasonic ERJ series resistors are automotive-grade, precision thick film chip resistors characterized by high reliability and a metal glaze thick film resistance element with three-layer electrodes. They offer a resistance range from 10 ohms to 2.2 megaohms, covering E24 and E96 decade values. Designed in compact case sizes including 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, and 2512, these resistors are small, lightweight, and compliant with automotive standards (AEC-Q200). They can handle a maximum power of 1W and are available in tolerance levels of ±0.5% and ±1%. The temperature coefficient (TCR) options include ±50, ±100, ±200, and ±300 ppm/°C. They operate within temperature ranges of -55°C to 125°C or -55°C to 155°C and meet industry standards IEC 60115-8, JIS C 5201-8, and EIAJ RC-2134B. Suitable for both reflow and flow soldering, these resistors are ideal for various automotive and electronic applications.
Panasonic ERJ8ENF2204V Precision Thick Film Resistor Specifications:
- Case Sizes: 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512
- Resistance Range: 10Ω to 2.2MΩ
- Tolerance: ±0.5% and ±1%
- Temperature Coefficient: ±50, ±100, ±200, ±300 ppm/°C
- Operating Temperature: -55°C to 125°C or -55°C to 155°C
- Power Rating: 1W
- Construction: Metal glaze thick film with three-layer electrodes
- Standards Compliance: IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
- Soldering: Suitable for reflow and flow soldering
- Applications: Automotive, industrial, and electronic equipment

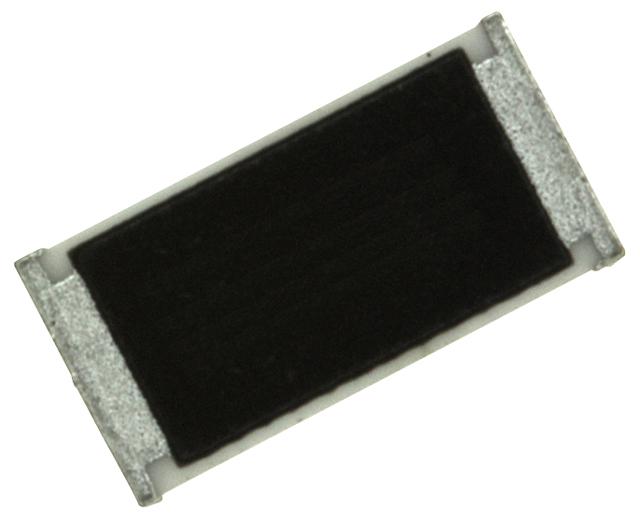

Buy the Buy Panasonic ERJ Series Part Number ERJ8ENF2204V Online
Purchase Panasonic ERJ series precision thick film chip resistors online today. These compact and reliable components deliver high stability, low resistance tolerance, and a wide resistance range ideal for automotive and industrial applications. Available in various sizes including 01005, 0201, 0402, and larger, with TCR options of ±50 to ±300 ppm/°C, they ensure consistent performance in demanding environments. Designed for both reflow and flow soldering, these resistors meet industry standards for quality and durability, making them perfect for modern electronic designs requiring high reliability and performance.
Get Panasonic ERJ8ENF2204V today—built for precision and long-lasting durability in electronic and automotive circuits.
Frequently Asked Questions
Where can I buy Panasonic ERJ8ENF2204V?
You can click on the BUY or RFQ button to purchase ERJ8ENF2204V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ8ENF2204V?
You can download the ERJ8ENF2204V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ8ENF2204V?
Panasonic
