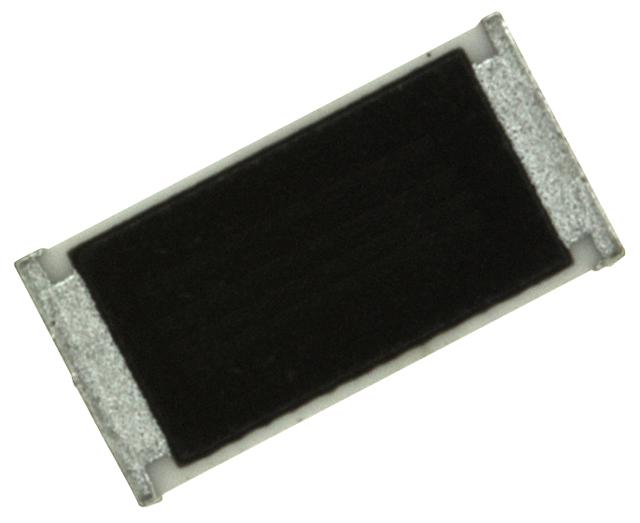

Panasonic ERJ8ENF2802V Automotive Chip Resistor
The Panasonic ERJ 8E series resistors are automotive-grade, precision thick film chip resistors. They cover a resistance range from 10 ohms to 2.2 megaohms, with E24 and E96 decade values. These resistors feature a metal glaze thick film resistive element and three layers of electrodes, ensuring high reliability. Available in various case sizes including 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, and 2512, they are small and lightweight. They are compliant with AEC-Q200 automotive standards, with a maximum power rating of 1 watt, and tolerance options of ±0.5% and ±1%. The temperature coefficient options include ±50, ±100, ±200, and ±300 ppm/°C. Operational temperature ranges are from -55°C to 125°C or -55°C to 155°C. They meet IEC 60115-8, JIS C 5201-8, and EIAJ RC-2134B standards and are suitable for reflow and flow soldering processes.
Panasonic ERJ8ENF2802V Automotive Chip Resistor Specifications:
- Resistance Range: 10Ω to 2.2MΩ
- Case Sizes: 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512
- Maximum Power Rating: 1W
- Tolerance Options: ±0.5%, ±1%
- Temperature Coefficient Options: ±50ppm/°C, ±100ppm/°C, ±200ppm/°C, ±300ppm/°C
- Operational Temperature Range: -55°C to 125°C or -55°C to 155°C
- Construction: Metal glaze thick film resistive element with three layers of electrodes
- Standards Compliance: IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
- Soldering Methods: Suitable for reflow and flow soldering processes
- Certifications: RoHS, AEC-Q200
- Size:** Various dimensions depending on case size, detailed in datasheets
- Resistance Tolerance: ±0.5% and ±1%
- Temperature Coefficient: as specified per series
- Environmental Resistance: Meets key automotive standards
- Package Options: Taping available for assembly
- Reliability: High, suitable for automotive and precision applications
Buy the Buy Panasonic ERJ 8E Series Resistance Part Number ERJ8ENF2802V Online
Experience the reliability and precision of Panasonic ERJ 8E series automotive-grade thick film chip resistors. Designed for high-performance applications, these resistors offer a resistance range from 10 ohms to 2.2 megaohms, tolerances of ±0.5% and ±1%, and operate effectively from -55°C to 125°C or 155°C. Available in multiple sizes including 01005, 0201, 0402, and larger, they are compliant with industry standards like IEC 60115-8 and RoHS. Perfect for automatic placement, they ensure durability in demanding environments. Elevate your circuit design by ordering online today for quality, reliability, and ease of integration.
Get Panasonic ERJ8ENF2802V today—built for automotive reliability, high precision, and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ERJ8ENF2802V?
You can click on the BUY or RFQ button to purchase ERJ8ENF2802V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ8ENF2802V?
You can download the ERJ8ENF2802V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ8ENF2802V?
Panasonic
