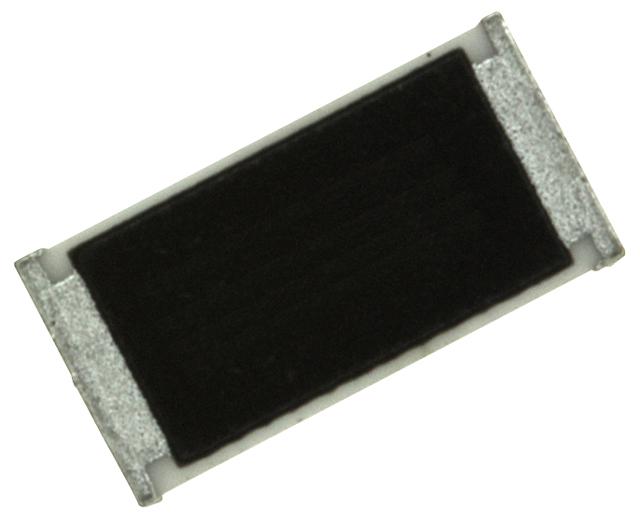

Panasonic ERJ8ENF6801V Precision Chip Resistor
The ERJ series resistors are automotive-grade, precision thick film chip resistors manufactured by Panasonic. These resistors feature a metal glaze thick film resistive element with three layers of electrodes, ensuring high reliability and durability. They are available in a variety of case sizes, including EIA standard sizes such as 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, and 2512. These small, lightweight resistors have a maximum power rating of 1 watt and are suitable for both reflow and flow soldering processes. They are available with tolerance levels of ±0.5% and ±1%, and have temperature coefficients (TCR) ranging from ±50 to ±300 ppm/°C. The operating temperature ranges are from -55°C to 125°C or -55°C to 155°C, meeting industry standards such as IEC 60115-8, JIS C 5201-8, and EIAJ RC-2134B. These resistors conform to automotive specifications with AEC-Q200 compliance.
Panasonic ERJ8ENF6801V Precision Chip Resistor Specifications:
- Size options include 01005, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512
- Maximum Power Rating: 1 W
- Resistance Tolerance: ±0.5%, ±1%
- Temperature Coefficient: ±50 to ±300 ppm/°C
- Operating Temperature Range: -55°C to 125°C or -55°C to 155°C
- Construction: Metal glaze thick film resistive element with three electrode layers
- Soldering: Suitable for reflow and flow soldering
- Standards: IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
- Compliance: Automotive grade, AEC-Q200
Buy the Buy Panasonic Precision Thick Film Chip Resistors Part Number ERJ8ENF6801V Online
Order the Panasonic ERJ series precision thick film chip resistors online today. These compact, reliable resistors offer industry-leading performance with resistance tolerances of ±0.5% and ±1%. Suitable for automotive applications, they support reflow and flow soldering, meeting strict industry standards. With a maximum power capacity of 1 watt, they deliver high durability across a wide temperature range from -55°C to 155°C. Enhance your electronic designs with these quality, automotive-grade resistors available for quick, secure online purchase.
Buy Panasonic ERJ8ENF6801V now and experience unmatched reliability and performance in automotive-grade precision resistors.
Frequently Asked Questions
Where can I buy Panasonic ERJ8ENF6801V?
You can click on the BUY or RFQ button to purchase ERJ8ENF6801V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ8ENF6801V?
You can download the ERJ8ENF6801V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ8ENF6801V?
Panasonic
