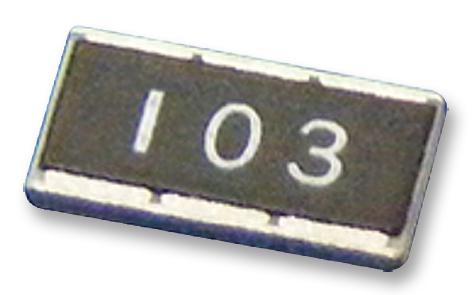

Panasonic ERJB1AF270U High Power Resistor
High power chip resistor with wide terminal construction designed for reliable solder joints and excellent heat dissipation. Compliant with AEC-Q200 and RoHS standards, suitable for automotive circuits including ECUs, ABS, and air-bag systems. Offers stability at rated voltages, and withstands overloads, thermal cycling, humidity, and mechanical stress. Constructed with a thick film resistive element on alumina substrate, featuring embossed carrier taping for automated assembly. Available in various resistance ratings and sizes, meeting strict specifications for durability and safety in demanding electronic applications.
Panasonic ERJB1AF270U High Power Resistor Specifications:
- Resistances: 270kΩ, 270Ω, or as specified, with tolerance codes B1, B2, B3
- Power Ratings: 1W, 0.75W, 2W depending on series
- Resistance Range: 10mΩ to 10kΩ, 22mΩ to 1MΩ, etc.
- Maximum Working Voltage: 400V, 350V, depending on size
- Operating Temperature: -55°C to +125°C
- Material: Thick film resistive element on alumina substrate
- Dimensions: Lengths 2.50 to 6.40 mm, width 0.70 to 1.27 mm, height approximately 0.45 to 0.70 mm
- Construction: Wide terminal design with embossed carrier taping for automated pick-and-place
- Compliance: AEC-Q200, RoHS, and industry standards
- Environmental Tolerance: Resistant to soldering heat, thermal cycling, humidity, and mechanical stress
Buy the Buy Panasonic High Power Chip Resistors Part Number ERJB1AF270U Online
Purchase the Panasonic ERJB1AF270U high power resistor online today for reliable performance in automotive electronic circuits, power supplies, and industrial applications. This resistor features wide terminal construction for excellent solder-joint reliability and superior heat dissipation. Compliant with industry standards, it withstands thermal cycling, humidity, overloads, and mechanical stress. Perfect for ECU, anti-lock braking systems, air-bag systems, and current sensing in power circuits. Secure your electronic projects with this durable, RoHS-compliant component available for quick and convenient online ordering.
Order your Panasonic ERJB1AF270U wide terminal resistor today and enhance your automotive and power circuits with dependable high-power performance.
Frequently Asked Questions
Where can I buy Panasonic ERJB1AF270U?
You can click on the BUY or RFQ button to purchase ERJB1AF270U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1AF270U?
You can download the ERJB1AF270U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1AF270U?
Panasonic
