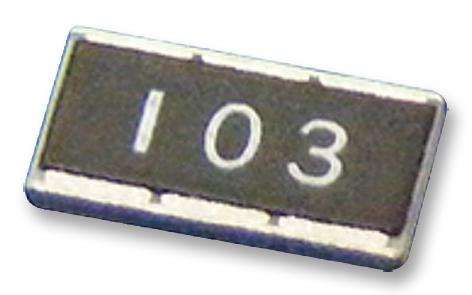

Panasonic ERJB1AF470U High Power Chip Resistor
These high power chip resistors with wide terminal construction are designed for reliable electrical connections, excellent heat dissipation, and industry-standard compliance, making them ideal for automotive and power sensing applications. They feature robust construction, RoHS and AEC-Q200 approval, and stable performance across temperature ranges. Suitable for use in engine control units, anti-lock braking systems, and various power supply circuits, their construction ensures high solder-joint reliability and efficient heat management, supporting long-term durability in demanding environments.
Panasonic ERJB1AF470U High Power Chip Resistor Specifications:
- Type: High Power Chip Resistors, Wide Terminal
- Series: ERJA, ERJB1, ERJB2, ERJB3
- Resistance Range: 10mΩ to 10kΩ
- Resistance Tolerance: ±1%, ±2%, ±5%, ±10%
- Power Rating: 0.5W to 2W depending on series
- Maximum Overload Voltage: 400V (ERJA, ERJB1), 200V (ERJB2, ERJB3)
- Operating Temperature Range: -55°C to +125°C
- Dimensions: Refer to datasheet for specific size (e.g., ERJB1: 2.50x5.00 mm)
- Material: Thick film resistance element on alumina substrate
- Compliance: RoHS, AEC-Q200
- Soldering: Reflow, wave, or vapor phase soldering compatible
- Reliability: High solder-joint reliability, low TCR, stable resistance over temperature
- Packaging: Embossed carrier taping, 4mm pitch, 4,000 to 5,000 pcs per reel
Buy the Panasonic ERJB1AF470U – Reliable High Power Chip Resistors for Industrial Applications
Purchase Panasonic ERJB1AF470U high power chip resistor online for your automotive and industrial electronics projects. Featuring wide terminal construction for high solder-joint reliability and exceptional heat dissipation, these resistors meet RoHS and AEC-Q200 standards. Ideal for engine control units, brake systems, and power sensing applications, ensuring stable operation under demanding temperature and electrical conditions. With easy-to-use packaging and extensive technical support, order now to enhance your circuit designs with Panasonic's proven reliability and performance.
Get Panasonic ERJB1AF470U today—built for high reliability and sustained performance in automotive and industrial electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic ERJB1AF470U?
You can click on the BUY or RFQ button to purchase ERJB1AF470U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1AF470U?
You can download the ERJB1AF470U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1AF470U?
Panasonic
