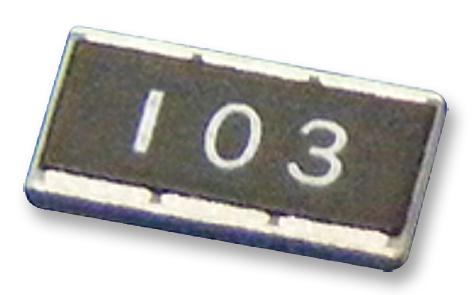

Panasonic ERJB1AF911U High Power Chip Resistor
High power chip resistor with wide terminal construction designed for automotive electronics including ECUs, anti-lock braking systems, and airbag controllers. It offers excellent heat dissipation, high solder-joint reliability, and complies with AEC-Q200 and RoHS standards. Suitable for current sensing in power supply circuits across various equipment, it provides reliable performance under demanding conditions, with specific ratings and dimensions optimized for embedded applications. It features enhanced heat dissipation and robust construction to ensure durability and performance in high-temperature environments.
Panasonic ERJB1AF911U High Power Chip Resistor Specifications:
- Resistance Range: 10mΩ to 10kΩ
- Tolerance: ±1%, ±2%, ±5%
- Power Rating: 0.75W to 2W (dependent on series)
- Maximum Voltage: 400V (ERJA), 200V (ERJB1), 48V (ERJB2), 200V (ERJB3)
- Operating Temperature Range: -55°C to +125°C
- Dimensions: ERJA1: 3.20 mm (L) x 0.70 mm (W); ERJB1: 2.50 mm (L) x 0.55 mm (W); ERJB2: 5.00 mm (L) x 0.90 mm (W); ERJB3: 2.00 mm (L) x 0.50 mm (W)
- Material: Thick film resistive element on alumina substrate
- Compliance: AEC-Q200, RoHS
- Packaging: Punched carrier taping with 4 mm pitch, 5,000 pieces per reel
- Recommended soldering: Reflow, wave; 270°C for 10 seconds
Buy the Buy Panasonic High Power Chip Resistors Part Number ERJB1AF911U Online
Purchase Panasonic ERJB1AF911U high power chip resistor online today to ensure excellent heat dissipation, high solder-joint reliability, and compliance with industry standards. Designed for demanding automotive and power supply applications, it offers robust performance in high-temperature environments with wide resistance options and reliable packaging. Our online store makes it easy to order these high-quality, RoHS-compliant resistors, enabling you to streamline your manufacturing process and improve circuit stability. Count on Panasonic's proven quality for your critical electronic projects.
Buy Panasonic ERJB1AF911U high power chip resistor now and experience unmatched heat dissipation and reliability for automotive power circuits.
Frequently Asked Questions
Where can I buy Panasonic ERJB1AF911U?
You can click on the BUY or RFQ button to purchase ERJB1AF911U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1AF911U?
You can download the ERJB1AF911U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1AF911U?
Panasonic
