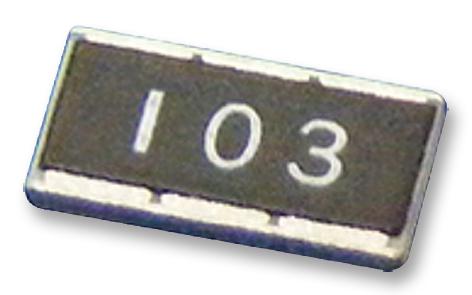

Panasonic ERJB1BF1R8U High Power Resistor
The high power chip resistor with wide terminals offers excellent heat dissipation and reliable solder-joint performance, making it suitable for automotive and industrial applications. Conforming to AEC-Q200 and RoHS standards, it ensures durability in critical environments. Designed for use in power circuits such as ECUs, airbag systems, and current sensing, this resistor features a robust construction with wide terminals that improve heat transfer and mechanical stability. Ideal for high-temperature environments, it provides stable resistance over a wide temperature range with high overload capacity and thermal stability.
Panasonic ERJB1BF1R8U High Power Resistor Specifications:
- Resistance Values: 1.8Ω, 2.2Ω, 3.0Ω, 4.7Ω, 5.8Ω, 6.8Ω, 8.2Ω, 10Ω, 15Ω, 22Ω, 33Ω, 47Ω, 56Ω, 68Ω, 82Ω, 100Ω, 150Ω, 220Ω, 330Ω, 470Ω, 560Ω, 680Ω, 820Ω, 1kΩ, 1.5kΩ, 2.2kΩ, 3.3kΩ, 4.7kΩ, 5.6kΩ, 6.8kΩ, 8.2kΩ, 10kΩ
- Tolerance: ±1%, ±2%, ±5%, ±F% (varies by series)
- Power Ratings: 0.75W (ERJB1), 1W (ERJB2), 2W (ERJB3)
- Maximum Operating Voltage: Varies with resistance value and power rating
- Temperature Range: -55°C to +125°C
- Overload Voltage: Rated voltage x 2.0 to 2.5 depending on series
- Resistance Tolerance Codes: B for ±0.5%, C for ±0.25%, D for ±0.1%
- Construction: Wide terminal construction with alumina substrate and resistive film
- Compliance: AEC-Q200, RoHS
- Dimensions: ERJB1 — length 2.50 mm, width 5.00 mm; ERJB2 — length 5.00 mm, width 3.20 mm; ERJB3 — length 2.00 mm, width 1.25 mm
- Packaging: Embossed carrier taping, 4mm pitch, up to 5,000 pieces per reel
Buy the Panasonic ERJB1 Series – Reliable High Power Resistors for Industrial Applications
Purchase Panasonic ERJB1 Series high power resistors online now—designed for reliability, high overload capacity, and excellent heat dissipation. Ideal for automotive, industrial, and power supply circuits, these resistors meet strict AEC-Q200 standards and RoHS compliance. They feature wide terminals for enhanced solder joint strength and heat transfer, ensuring long-lasting performance in demanding environments. Whether for current sensing, ECUs, or airbag systems, buy online today and ensure your projects benefit from durable, high-quality resistors with consistent precision and stability under tough conditions.
Get Panasonic ERJB1 Series today—built for high heat dissipation, automotive reliability, and optimal performance in power circuits.
Frequently Asked Questions
Where can I buy Panasonic ERJB1BF1R8U?
You can click on the BUY or RFQ button to purchase ERJB1BF1R8U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1BF1R8U?
You can download the ERJB1BF1R8U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1BF1R8U?
Panasonic
