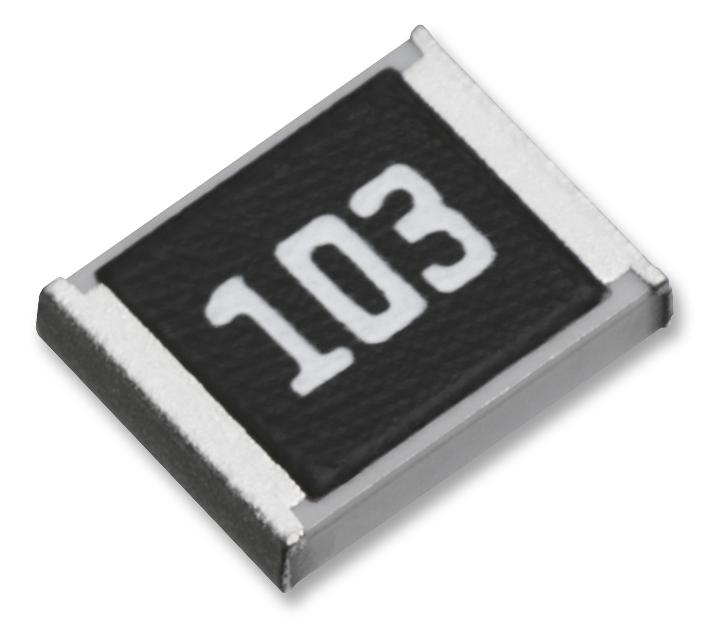

Panasonic ERJP03F1182V Thick Film Chip Resistors
The ERJP03 series thick film chip resistors are designed for high reliability and superior ESD surge characteristics, making them suitable for various electronic applications. These resistors feature metal glaze thick film resistive elements with three layers of electrodes, ensuring high power ratings (0.33 W for 0603 size) and high resistance values. Compliant with IEC 60115-8, JIS C 5201-8, JEITA RC-2134C standards, and AEC-Q200, they are RoHS compliant and ideal for surface-mount technology, offering excellent performance in reflow and flow soldering processes.
Panasonic ERJP03F1182V Thick Film Chip Resistors Specifications:
- Power Ratings: 0.20 W (0603, ERJP03), 0.25 W (0402, ERJPA2), 0.33 W (0603, ERJPA3), 0.50 W (0805, ERJP06; 1210, ERJP14), 0.66 W (1206, ERJP08), 1.02 M (ERJPM8), resistance tolerance ±1%, resistance range from 10Ω to 1MΩ, limiting element voltage 500 V, TCR +100 (×10%), IEC 60115-8, JIS C 5201-8, JEITA RC-2134C standards, RoHS and AEC-Q200 compliant.
- Dimensions: ERJP03: 1.60±0.15 mm length, 0.80±0.15 mm width, 0.15+0.15/-0.10 mm height; ERJPA2: 1.00±0.05 mm length, 0.50±0.05 mm width; ERJPA3: 1.60±0.15 mm length, 0.80±0.15 mm width; ERJP06: 2.00±0.20 mm length, 1.25±0.10 mm width; ERJPO8: 3.20±0.05/-0.20 mm length, 1.60±0.05/-0.15 mm width; ERJP14: 3.20±0.20 mm length, 2.50±0.20 mm width.
- ESD Protection: Suitable for ESD surge susceptibility environments, tested with sample ESD characteristics up to 1.5 kΩ resistance change, and capable of withstanding high electrostatic discharge levels depending on size.
- Temperature & Soldering: Capable of withstanding high temperature cycles (+155°C and +125°C for ERJPA2; +155°C for others), optimized for reflow and flow soldering, with strict guidelines to prevent damage and performance degradation.
Buy the Panasonic Series ERJ Resistors: ERJP03F1182V
Discover the high-reliability Panasonic thick film chip resistors designed for demanding electronic applications. Featuring superior ESD surge resistance, these surface-mount resistors comply with industry standards, offering excellent thermal stability, high power ratings, and precise resistance values. Available in various sizes like 0603 and 1210, they are suitable for reflow and flow soldering processes. Ideal for high voltage, high resistance, and high precision needs, these resistors are perfect for automotive, industrial, and consumer electronics requiring durable and reliable performance.
Order your Panasonic Series ERJ resistors ERJP03F1182V today and give your electronic systems the dependable high-power, surge-resistant performance they deserve.
