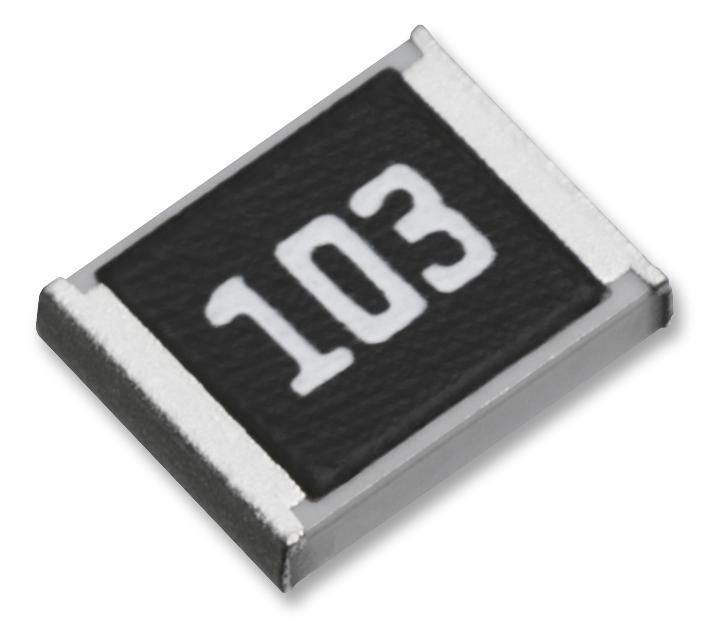

Panasonic ERJP6WF5600V Anti-Surge Thick Film Resistor
The Panasonic ERJP6W series features high-reliability anti-surge thick film chip resistors with a double-sided resistive structure for enhanced performance. Designed for applications requiring superior surge handling and pulse characteristics, these 0805 size resistors provide a power rating of 0.50W and incorporate metal glaze thick film resistive elements with three-layer electrodes. Suitable for both reflow and flow soldering, they meet IEC 60115-8, JIS C 5201-8, and IECAJ RC-2134B standards, and are ROHS compliant, offering excellent electrostatic discharge resilience and high pulse tolerance.
Panasonic ERJP6WF5600V Anti-Surge Thick Film Resistor Specifications:
- Size: 0805 (2.00 mm x 1.25 mm)
- Power Rating: 0.50W (2012 size)
- Resistance Tolerance: ±1%
- Resistance Range: 10Ω to 1MΩ
- Peak Pulse Power: 1.5 times higher than standard 0805 resistors
- Maximum Voltage: 150V
- Operating Temperature Range: -55°C to +155°C
- Material: Metal glaze thick film with three-layer electrodes
- Surge Characteristics: Superior to standard metal film resistors
- Soldering: Suitable for reflow and flow soldering, RoHS compliant
- Standards: IEC 60115-8, JIS C 5201-8, IECAJ RC-2134B
- RoHS: Compliant
- ESD Surge: 3.0KV with 150pF capacitor
- Pulse Duration: Up to 1 millisecond with specified pulse power
- Construction: Alumina substrate with protective coating and dual electrode layers
- Packaging: Punched carrier tape suitable for automatic placement
- Application: Designed for surge absorption in electronic circuits requiring high reliability
