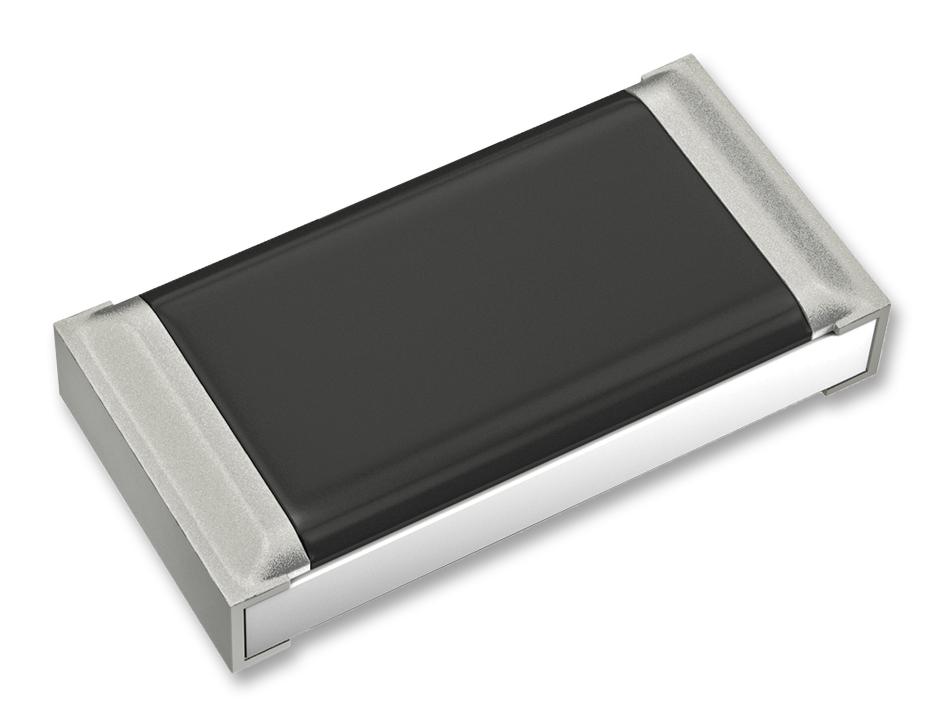

Panasonic ERJPA2F6801X Anti-Surge Resistor
The Anti-Surge Thick Film Chip Resistors are high-reliability surface-mount resistors designed for industrial applications, offering superior ESD surge characteristics compared to standard metal film resistors. They feature metal glaze thick film resistive elements with three-layer electrodes, making them suitable for reflow and flow soldering processes. Range from 0402 to 1210 sizes, with power ratings up to 0.66W. These resistors are compliant with IEC 60115-8, JIS C 5201-8, JEITA RC-2134C standards, and meet AEC-Q200 and RoHS requirements for high-quality performance in demanding environments.
Panasonic ERJPA2F6801X Anti-Surge Resistor Specifications:
- Power Ratings: 0.20W (0402), 0.33W (0603), 0.50W (0805, 1210), 0.66W (1206)
- Resistance Range: 10Ω to 1MΩ, with ±1% tolerance
- Limiting Element Voltage: 500V
- Resistance Temperature Coefficient: +100 (x 10%/K)
- Temperature Rise: -55°C to +125°C depending on series
- Dimensions: Length varies from 1.00 mm to 3.20 mm, Width from 0.50 mm to 2.50 mm, Thickness approx. 0.15 mm to 0.20 mm
- ESD Characteristics: 100 pF/150 pF capacitor, 1.5 kΩ/0 Ω resistive element for ESD protection
- Standards Compliance: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C, AEC-Q200, RoHS
- Package Types: Punched carrier, embossed carrier, tape for SMT
- Environmental Ratings: High surge withstand, suitable for reflow and flow soldering, RoHS compliant
- Construction: Alumina substrate, thick film resistive element, inner and outer electrodes
- Dimensions (mm): ERJPA2: 1.00x0.50, ERJPA3: 1.60x0.80, ERJPO3: 1.60x0.80, ERJPO6: 2.00x1.25, ERJPO8: 3.20x1.60, ERJP14: 3.20x2.50
Buy the Panasonic ERJPA2F6801X – Reliable Anti-Surge Resistors for Industrial Applications
Purchase Panasonic ERJPA2F6801X anti-surge thick film chip resistor online today. Designed for industrial use, these resistors combine high surge capability with exceptional reliability. Perfect for applications requiring high voltage resistance, excellent thermal stability, and RoHS compliance. Easy to mount thanks to various packaging options. Ensure your projects are protected against electrical surges and static discharge while maintaining durability and precision. Order now and benefit from high-quality industrial resistors engineered for demanding electrical environments.
Get Panasonic ERJPA2F6801X today—built for high surge withstand and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ERJPA2F6801X?
You can click on the BUY or RFQ button to purchase ERJPA2F6801X from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJPA2F6801X?
You can download the ERJPA2F6801X datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJPA2F6801X?
Panasonic
