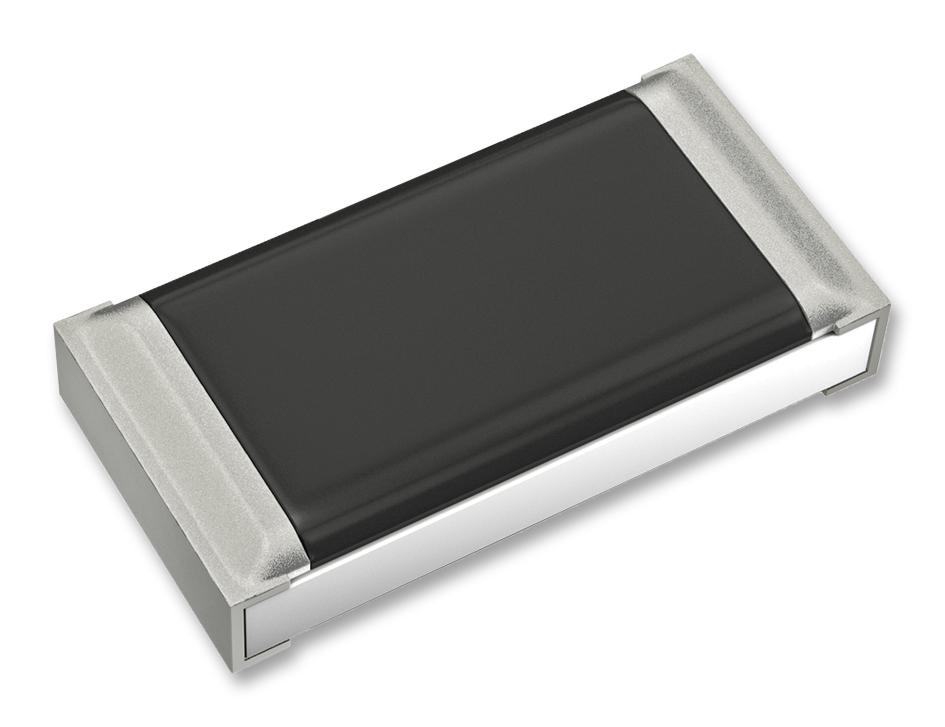

Panasonic ERJPA3F16R5V High-Voltage Chip Resistor
The ERJPA3 series are anti-surge thick film chip resistors designed for high reliability and performance in industrial applications. Featuring superior ESD surge characteristics compared to standard metal film resistors, these resistors incorporate a metal glaze thick film resistive element and three layers of electrodes. They are suitable for both reflow and flow soldering processes, with power ratings of 0.20 W (0603 size), 0.33 W (0603 size), and high resistance values up to 1 MΩ. Certified compliant with IEC 60115-8, JIS C 5201-8, JEITA RC-2134C, and RoHS, and are compatible with AEC-Q200 standards, making them ideal for high-voltage, high-precision applications.
Panasonic ERJPA3F16R5V High-Voltage Chip Resistor Specifications:
- Power Ratings: 0.20 W (0603), 0.33 W (0603), 0.50 W (0805), 0.66 W (1206), 1.02 MΩ resistance at 0.66 W
- Resistance Tolerance: ±1%
- Resistance Range: 10 to 1MΩ
- Operating Temperature: -55°C to +155°C (ERJPA2: +125°C)
- Limiting Element Voltage: 500 V
- Dimensions: Length 1.60+0.15 mm, Width 0.80+0.15 mm, Height 0.25+0.10 mm (ERJPA3 series)
- Electrode Structure: Inner and outer electrodes with thick film resistive element
- Soldering: Suitable for both reflow and flow soldering
- Standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C, RoHS, AEC-Q200 compliant
