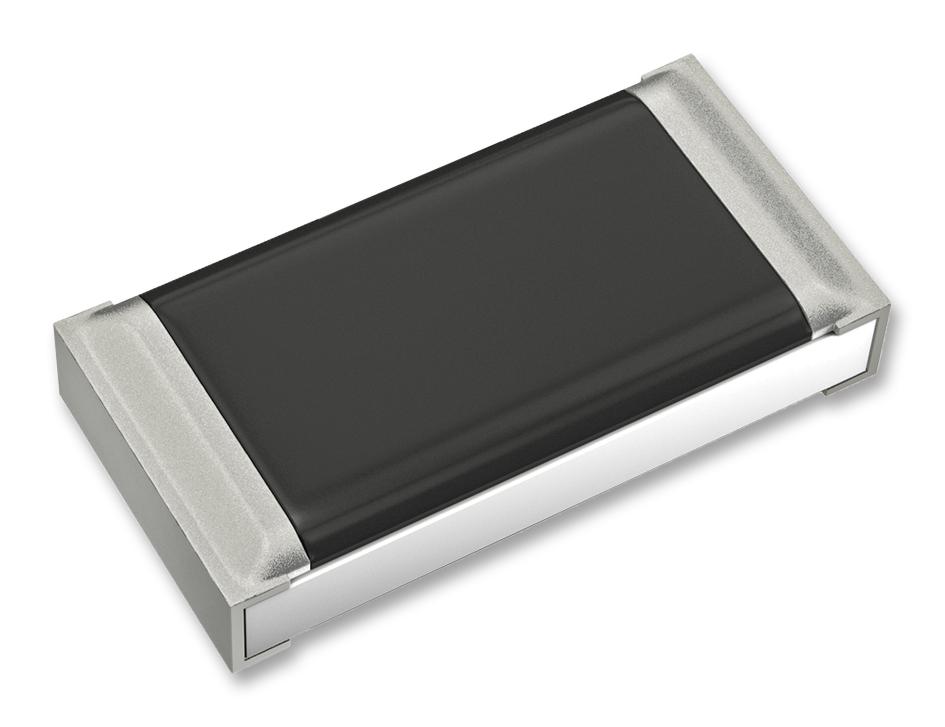

Panasonic ERJPA3F2260V Anti-Surge Chip Resistor
This is a high-reliability anti-surge thick film chip resistor designed for robust performance against transient voltage surges. It features a metal glaze thick film resistive element and three layers of electrodes, ensuring superior ESD surge characteristics compared to standard metal film resistors. Suitable for reflow and flow soldering, it comes in various power ratings and sizes, including 0603, 1206, and 1210. Compliant with IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C standards, and certified for AEC-Q200 and RoHS, it is ideal for high-voltage and high-precision applications in demanding electronic environments.
Panasonic ERJPA3F2260V Anti-Surge Chip Resistor Specifications:
- Size: 0603 inch / 1608 mm (ERJPA3), other sizes include 0402, 1206, 1210
- Power Ratings: 0.20 W (0603), 0.33 W (0603), 0.50 W (0805, 1210), 0.66 W (1206), 1.02 MΩ to 10 MΩ resistances available
- Resistance Tolerance: ±1 %
- TCR: +100 (× 10%/K)
- Rated Voltage: Up to 500 V (high voltage capability)
- Materials: Metal glaze thick film resistive element, three-layer electrode structure
- Certifications: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C, RoHS, AEC-Q200
- ESD Characteristics: 100 pF / 150 pF capacitance, 1.5 kΩ / 0 Ω resistance at 1kV / 3kV1
- Dimensions: Length and width vary by size, for example, 1.60 mm length, 0.80 mm width for ERJPA3
- Temperature Range: -55°C to +155°C, derating applicable based on ambient conditions
Buy the Panasonic Series ERJ Anti-Surge Resistor: ERJPA3F2260V
Purchase Panasonic ERJPA3F2260V anti-surge thick film resistor online today to ensure high reliability against voltage surges. Designed for electronics demanding superior ESD characteristics, it supports both reflow and flow soldering processes. Ideal for high-voltage circuits requiring precise resistance values and certifications including IEC 60115-8 and JEITA standards. Secure your supply of high-quality resistors with fast delivery and customer support. Elevate your electronic designs with Panasonic’s proven performance. Order now for dependable surge resistance in various sizes with certified safety standards.
Buy Panasonic ERJPA3F2260V now and experience unmatched reliability and high-voltage surge protection for demanding electronic applications.
