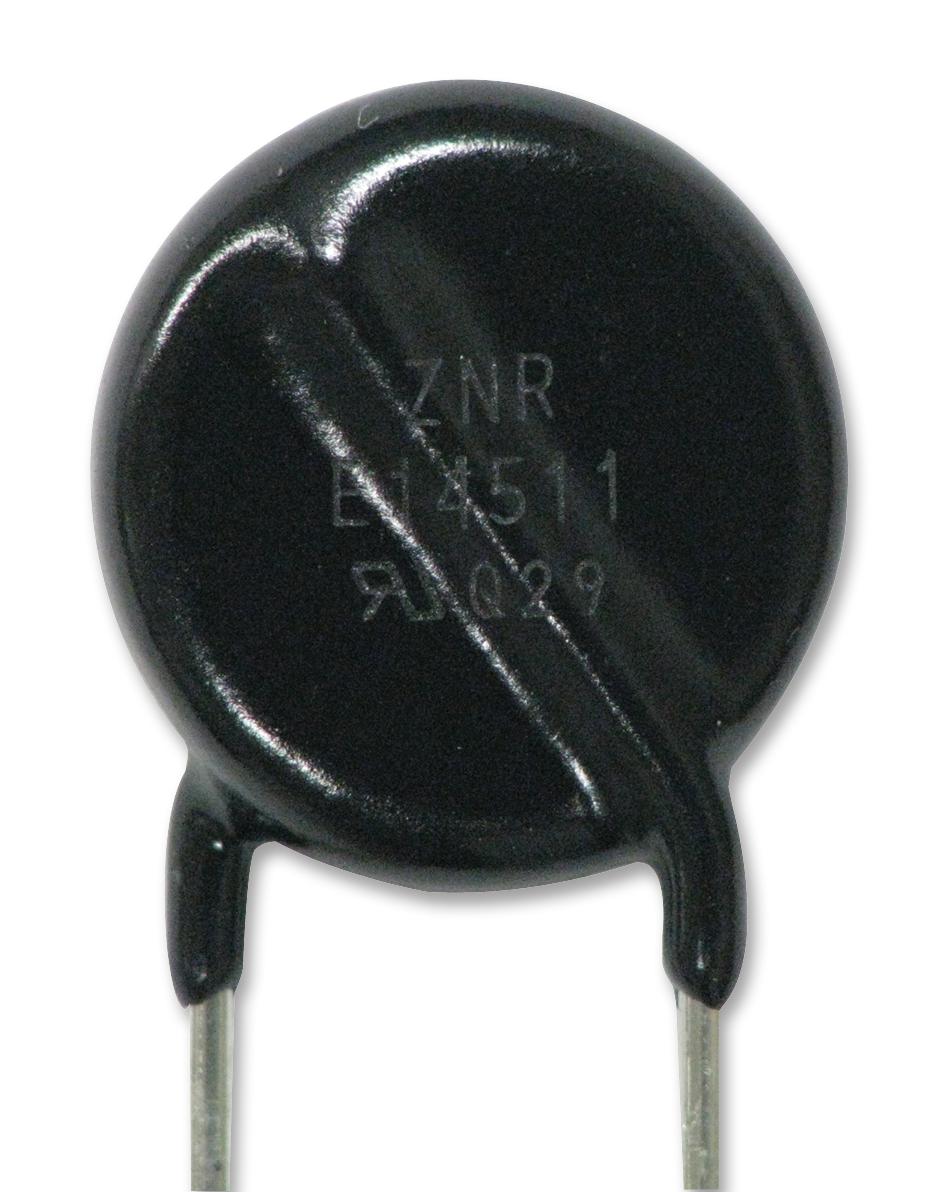

Panasonic ERZE14A112SC Surge Absorber
The Panasonic ZNR series Type D transient surge absorbers are compact, high-capacity devices designed for surge protection in electronic and industrial applications. Suitable for protecting semiconductor devices, ICs, diodes, and thyristors, they withstand high surge currents up to 7500A at 8/20 us and operate within a temperature range of -40°C to 125°C. These RoHS-compliant varistors feature various voltage ratings, robust energy handling capabilities, and comply with UL1449, VDE, and CQC safety standards, making them ideal for communication, consumer electronics, and industrial surge protection.
Panasonic ERZE14A112SC Surge Absorber Specifications:
- Operating Temperature Range: -40 to 125°C
- Storage Temperature Range: -40 to 125°C
- Rated Voltage: 200V to 1100V AC, 185V to 1210V DC
- Maximum Allowable Voltage: 130V to 1120V
- Peak Current at 8/20 us: up to 7500A
- Clamping Voltage at 8/20 us: 170V to 1815V
- Capacitance: 350pF to 6500pF depending on model
- Power Dissipation: 1.0W (typical)
- Standards Compliance: UL1449 (VZCA2/UL, VZCAB/UL), VDE IEC61051-1, -2, -2-2, IEC60950-1, IEC62368-1, CQC (GB/T)
- Lead Configuration: S1 straight lead, bulk packaging, lengths 20.0-20.5mm, diameter 16.5-17.5mm
- Dimensions: D=16.5mm max, A=20.0mm max, B=4.0mm, T=10.0+1.0mm
Buy the Panasonic ERZ14A – Reliable Surge Absorbers for Industrial Applications
Purchase Panasonic surge absorbers today for superior surge protection in electronic and industrial equipment. These compact, reliable devices feature high surge current capacity up to 7500A, wide voltage ratings, and compliance with strict safety standards such as UL1449, VDE, and CQC. Designed to withstand extreme temperatures from -40°C to 125°C, they ensure effective transient overvoltage suppression in communication systems, consumer electronics, and industrial automation. Buying online guarantees quick delivery and authentic Panasonic quality for your surge protection needs.
Get Panasonic ERZ14A series surge absorbers today—built for high energy handling and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ERZE14A112SC?
You can click on the BUY or RFQ button to purchase ERZE14A112SC from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERZE14A112SC?
You can download the ERZE14A112SC datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERZE14A112SC?
Panasonic
