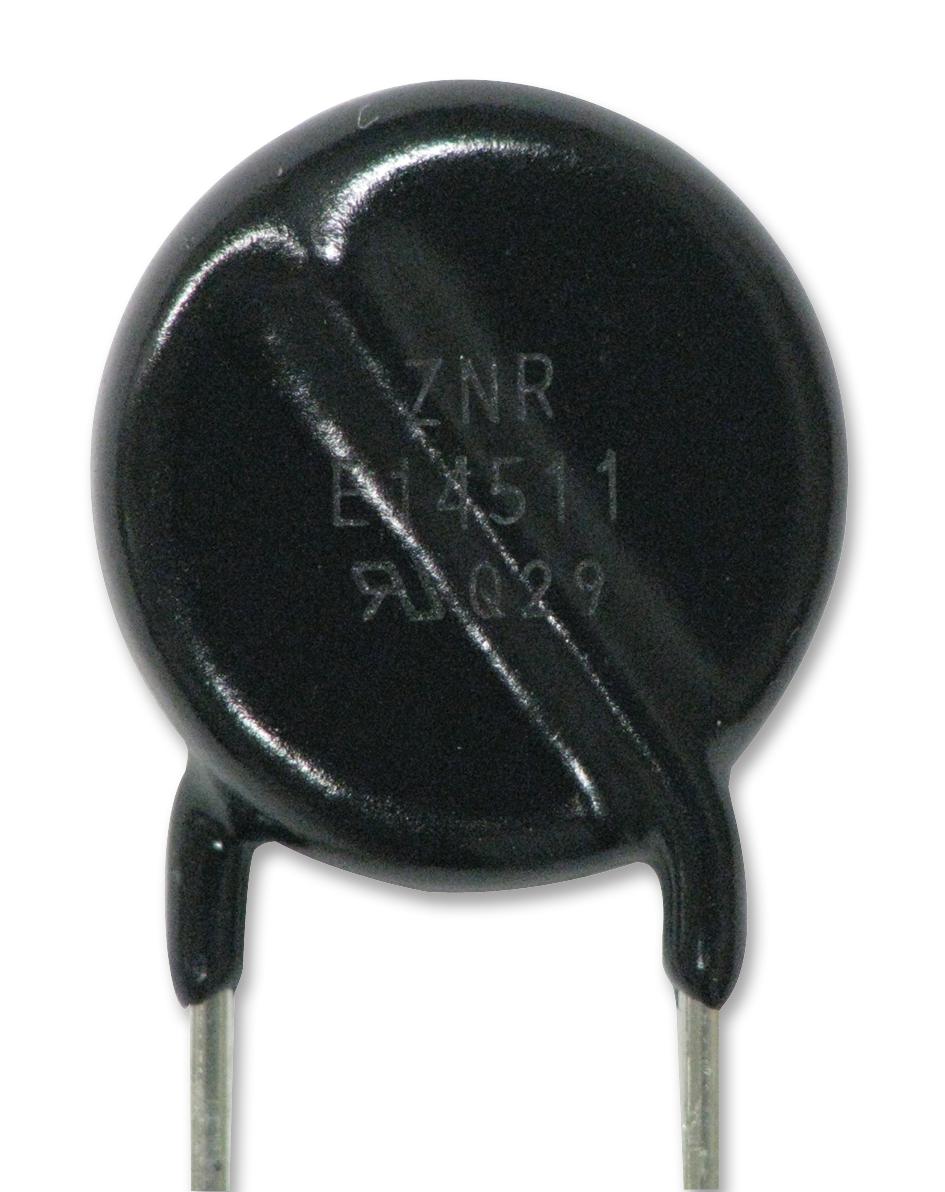

Panasonic ERZE14A561 Surge Absorber
The Panasonic Varistor Series E14 Type D offers high surge current and energy absorption capabilities in a compact form, ideal for transient overvoltage protection in electronic devices and appliances. Engineered for reliable performance, these varistors comply with UL1449, VDE, IEC standards, and RoHS, making them suitable for surge protection in communication, consumer electronics, and industrial applications. With wide voltage ranges and robust construction, Series E14 enhances circuit safety by suppressing voltage spikes effectively, ensuring long-term durability and preventing damage from transient surges.
Panasonic ERZE14A561 Surge Absorber Specifications:
- Maximum Voltage: 560V (385 to 616V range depending on series and model)
- Maximum Allowable Voltage: 930V
- Rated Power: 1.0 (8/20 μs)
- Peak Current: 10,000A (2 ms)
- Max Clamping Voltage: 930V
- Energy Handling Capability: 85-90 words
- Capacitance: 273 pF (approximate, varies per model)
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 125°C
- Impedance and performance tested per IEC and UL standards
- Dimensions: D max. 16.5 mm, T max. 7.2 mm, L approx. 17.5 mm
- Compliance: RoHS, CE, UL, VDE
Buy the Panasonic Series E14 Varistors Surge Absorber : 560
Purchase Panasonic Series E14 Varistors online today—engineered for optimal transient overvoltage suppression, compact size, and reliable performance. These high-capacity surge absorbers protect electronic circuits and appliances from voltage surges effectively. With compliance to UL1449, VDE, IEC standards, and RoHS certification, they ensure safety and durability. Ideal for consumer electronics, communication devices, and industrial electronics, they offer excellent energy handling capacity and low capacitance, ensuring your devices are protected against transient spikes while maintaining high quality and safety standards.
Get Panasonic Series E14 Varistor today—built for precision and long-lasting durability in surge protection applications.
