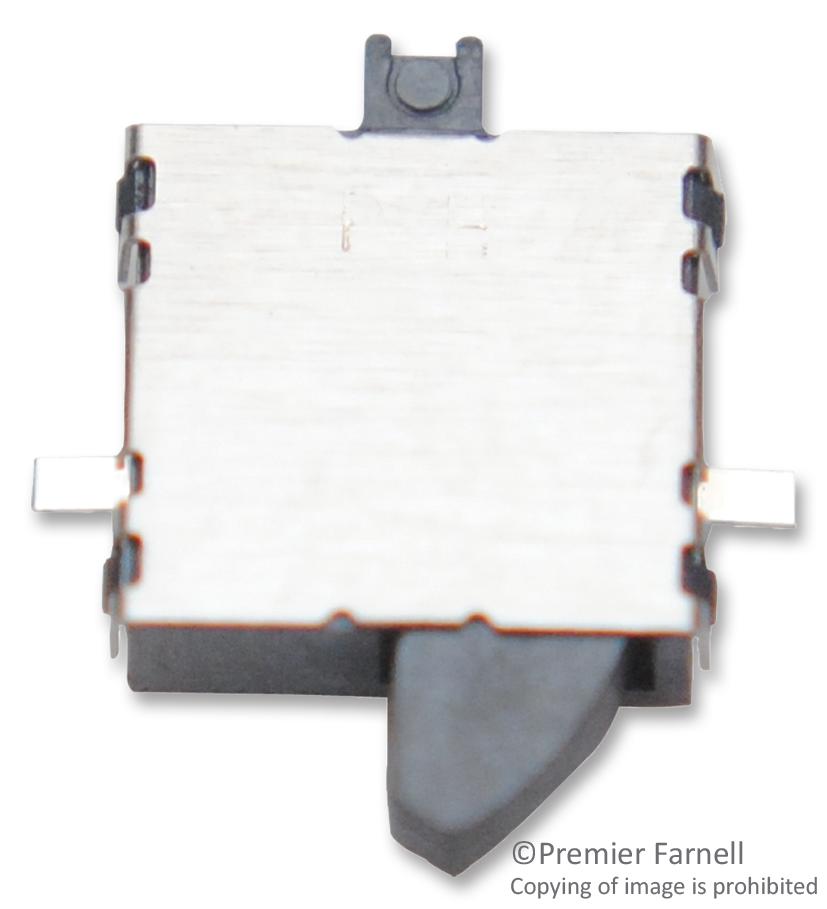

Panasonic ESE31L15T Detector Switch
The Panasonic ESE31 series are reliable detector switches designed for media detection in portable electronic devices. Featuring increased mounting strength of 80 N, a slim profile with a height of just 1.7 mm, and enhanced contact reliability, these switches are optimized for durability with a lifespan of over 100,000 operations. They support resistive loads of 50 μA at 3 Vdc to 10 mA at 5 Vdc, making them suitable for various electronic applications, including media detection in compact and portable equipment. Their robust construction ensures consistent performance in demanding environments.
Panasonic ESE31L15T Detector Switch Specifications:
- Rating: 50 μA at 3 Vdc to 10 mA at 5 Vdc (Resistive load)
- Contact Resistance: 500 mΩ max. (Initial)
- Insulation Resistance: 100 MΩ min. (100 Vdc)
- Dielectric Withstanding Voltage: 100 Vac for 1 minute
- Operating Force: 390 mN max.
- Mounting Height: 1.7 mm
- Poles and Throws: 1-pole 1-throw
- Full Travel (Pushing Distance): 3.2 mm (2.15 mm)
- Operating Life: 50,000 cycles min.
- Temperature Range: -10°C to +70°C
- Heat Resistance: +85°C for 96 hours
- Low Temperature Resistance: -40°C for 96 hours
- Humidity Resistance: +60°C, 90-95% RH for 96 hours
- Packaging: 2500 pcs. embossed taping (reel pack), 15,000 pcs. per carton
Buy the Panasonic Series ESE31 Detector Switch: ESE31L15T
Purchase the Panasonic ESE31 series detector switches online now to enhance your electronic device performance. Designed for durability, with over 100,000 cycles lifespan, these switches provide reliable media detection in portable equipment. They feature a compact profile of just 1.7 mm height, robust mounting strength of 80 N, and support resistive loads up to 5 Vdc. Ideal for engineers seeking durable, high-quality switch components for electronic and media detection systems, available in convenient reel packaging. Order today and secure consistent performance for your devices.
Order your Panasonic Series ESE31 detector switch today and ensure reliable media detection in your portable electronic projects.
