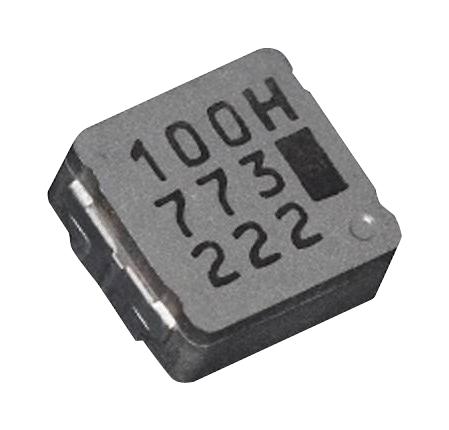

Panasonic ETQP3M100HFN Power Choke Coil
The Panasonic Power Choke Coil series, including models PCC-M0530M-H and PCC-M0630M-H, offers high heat resistance, reliability, and low profile design ideal for automotive and industrial applications. Equipped with metal composite cores, these SMD components reduce core loss at high frequencies (above 2 MHz) and operate at temperatures up to 150°C, making them suitable for noise filtering, boost and buck converters. They feature high bias current stability, vibration resistance, shielding, and RoHS compliance, ensuring high performance in demanding environments.
Panasonic ETQP3M100HFN Power Choke Coil Specifications:
- Inductance: 2.2 pH to 22.0 pH
- Rated current: 19.5A to 144A depending on model
- Tolerance: ±20%
- Size: 5mm x 6mm for PCC-M0530M-H, 6mm x 6mm x 3mm for PCC-M0630M-H
- Core: Metal composite, shielded
- Operating temperature range: -40°C to +150°C
- Temperature rise: within specified limits with proper heat dissipation
- RoHS and AEC-Q200 compliant
- Operating in high vibration and stress conditions
- Low DC resistance and eddy-current loss for high efficiency
- Designed for noise filtering, power converters, automotive electronics
- Package quantity: 2,000 pcs per reel
- Solderability guaranteed for 1 year, suitable for SMD mounting
- Embossed carrier tape for automated assembly, reel size varies by series
Buy the Panasonic PCC-M0530M-H – Reliable Power Choke Coil for Industrial Applications
Secure your supply of Panasonic Series PCC-M0530M-H or PCC-M0630M-H power choke coils online today. These automotive-grade inductors ensure high reliability, operating up to 150°C, and feature high heat resistance, vibration resistance, low DC resistance, and shielded construction. Perfect for noise filtering, boost- and buck-converters in automotive and industrial electronics, they come in easy-to-automate tape packaging with guaranteed solderability for seamless integration in your production line. Purchase now to ensure consistent, high-quality performance in your applications.
Order your Panasonic Series PCC-M0530M-H power choke coil today and enhance your automotive or industrial circuitry with high-performance, low-profile inductors designed for demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ETQP3M100HFN?
You can click on the BUY or RFQ button to purchase ETQP3M100HFN from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ETQP3M100HFN?
You can download the ETQP3M100HFN datasheet or visit the Panasonic website for support.
Who is the manufacturer of ETQP3M100HFN?
Panasonic
