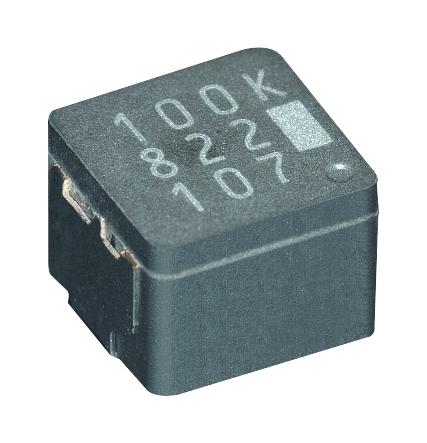

Panasonic ETQP4M4R7KFN Power Choke Coil
The Power Choke Coil from the Automotive Grade series offers high heat resistance, high reliability, low loss, and excellent inductance stability across a broad temperature range. Featuring a metal composite core and shielded construction, it withstands severe automotive conditions, low audible noise, and high bias currents. Suitable for noise filtering in drive circuitry, boost and buck conversions, it complies with AEC-Q200 and RoHS standards, ensuring safety and environmental compliance in demanding applications. This SMD type power inductor delivers high performance with low DC resistance and vibration resistance, ideal for modern automotive electrical systems.
Panasonic ETQP4M4R7KFN Power Choke Coil Specifications:
- Inductance: 4.7 uH
- Tolerance: ±30%
- Operating temperature: -40°C to +150°C
- Core Material: Metal composite
- Type: SMD surface mount
- Shielded construction
- Rated current: 13.1 A
- Dimensions (Series PCC-M0648M-LE): 6.44 x 6.44 mm
- Dimensions (Series PCC-M0748M-LE): 7.42 x 7.42 mm
- Height: 2.0 ± 0.2 mm
- Operating temperature after PCB mounting: -5°C to +35°C, Tc: -40°C to +150°C
- Standards: AEC-Q200, RoHS compliant
- Application: Noise filter, DC/DC converter in automotive applications
- Low DC resistance, high vibration resistance, and high bias current capability
- Package includes: 1,000 pcs per box (2 reels)
Buy the Panasonic Series Automotive Power Choke Coil: ETQP4M4R7KFN
Order the Panasonic automotive-grade power choke coil ETQP4M4R7KFN online today. This high-reliability inductor offers excellent inductance stability, low loss, and high heat resistance up to 150°C. Designed for noise filtering, DC/DC converters, and automotive drive circuitry, it features a shielded SMD construction for vibration resistance and low audible noise. Ideal for demanding automotive and industrial applications, this component ensures optimal performance, safety, and environmental compliance. Purchase now to enhance your electronic design with proven quality and durability.
Buy Panasonic ETQP4M4R7KFN now and experience unmatched reliability and high-temperature stability for automotive noise filtering and power conversion.
Frequently Asked Questions
Where can I buy Panasonic ETQP4M4R7KFN?
You can click on the BUY or RFQ button to purchase ETQP4M4R7KFN from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ETQP4M4R7KFN?
You can download the ETQP4M4R7KFN datasheet or visit the Panasonic website for support.
Who is the manufacturer of ETQP4M4R7KFN?
Panasonic
