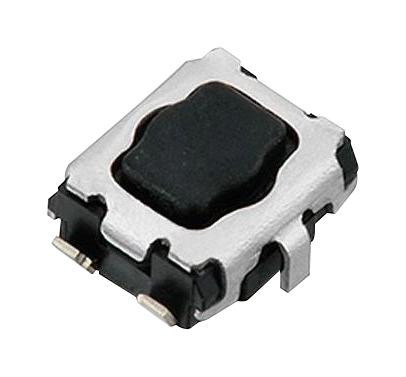

Panasonic EVPAA102K Light Touch Switch
The Panasonic EVPAA series light touch switches offer compact design with dimensions of 3.5 mm x 2.9 mm and a height of 1.7 mm, making them ideal for portable electronics and keyless entry systems. Featuring snap action, push-on type SPST contact style, with an electrical rating of 10 pA at 2 V DC, and a contact resistance of max 100 mΩ, these switches withstand voltages up to 250 V AC for 1 minute. Available with optional ground terminals and operating forces ranging from 1.0 N to 7.0 N, they offer high durability with up to 1 million cycles. Suitable for applications requiring high push force and reliability in compact environments.
Panasonic EVPAA102K Light Touch Switch Specifications:
- External dimensions: 3.5 mm x 2.9 mm, height 1.7 mm
- Operating force: 1.0 N to 7.0 N
- Contact style: Snap action, Push-on SPST
- Electrical Rating: 10 pA at 2 V DC, 20 mA at 15 V DC resistive load
- Contact Resistance: Max 100 mΩ
- Insulation Resistance: Min 100 MΩ at 100 V DC
- Dielectric Withstanding Voltage: 250 V AC for 1 minute
- Mechanical travel: 0.15 mm + 0.1 mm
- Endurance: Up to 1,000,000 cycles (1.0 N), 500,000 cycles (3.5 N), 200,000 cycles (5.0 N, 7.0 N)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C (bulk), -20°C to +60°C (taping)
- Quantity per reel: 5,000 pcs; per carton: 25,000 pcs
Buy the Panasonic Series EVPAA Light Touch Switch: EVPAA102K
Explore the Panasonic EVPAA series light touch switches designed for portable electronic applications and keyless entry systems. These ultra-compact switches measure just 3.5 mm by 2.9 mm with a height of 1.7 mm, making them ideal for space-constrained designs. They feature a snap action push-on type SPST contact style, with electrical ratings up to 250 V AC for 1 minute. Equipped with multiple operating force options from 1.0 N to 7.0 N, these switches provide exceptional durability of up to a million cycles, ensuring long-lasting performance. Perfect for modern electronic devices requiring tiny yet reliable switches.
Buy Panasonic EVPAA102K light touch switch now and experience unmatched reliability and performance in compact electronic designs.
Frequently Asked Questions
Where can I buy Panasonic EVPAA102K?
You can click on the BUY or RFQ button to purchase EVPAA102K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVPAA102K?
You can download the EVPAA102K datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVPAA102K?
Panasonic
