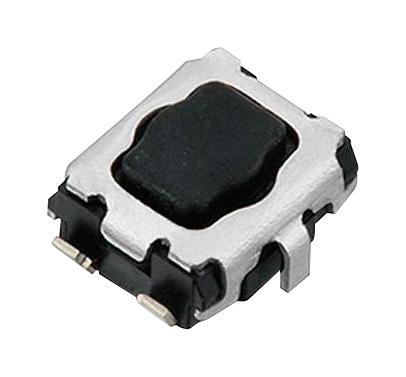

Panasonic EVPAA502W Surface-Mount Light Touch Switch
The Panasonic Light Touch Switches EVPAA series features compact, 3.5 mm x 2.9 mm surface-mount devices with an operational height of 1.7 mm, suitable for portable electronics and keyless entry systems. These SPST push-on/Snap action switches support resistive loads up to 20 mA at 15 V DC, with operating forces ranging from 1.0 N to 7.0 N and a travel distance of 0.15 mm. Designed for durability, they endure up to 1 million cycles. Wide temperature tolerance from -40°C to +85°C ensures reliable performance in various environments. Optional ground terminal enhances grounding options; packed in embossed taping for automated assembly.
Panasonic EVPAA502W Surface-Mount Light Touch Switch Specifications:
- External dimensions: 3.5 mm x 2.9 mm, height 1.7 mm
- Type: SPST snap action/push-on
- Rated current: 20 mA at 15 V DC, 10 pA at 2 V DC resistive load
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ min at 100 V DC
- Dielectric Withstanding Voltage: 250 V AC for 1 min
- Travel: 0.15 mm +0.1 mm
- Operating Force: 1.0 N, 1.6 N, 2.4 N, 3.5 N, 5.0 N, 7.0 N
- Endurance: 1,000,000 cycles (1.0 N), 500,000 cycles (3.5 N), 200,000 cycles (others)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C (bulk), -20°C to +60°C (taping)
- Quantity per carton: 25,000 pcs
- Minimum packing: 5,000 pcs in embossed taping
- Failure to wash: Not washable
- Design and specs subject to change; verify current details before use
Buy the Panasonic Series EVPAA Light Touch Switches: EVPAA502W
Discover the Panasonic EVPAA series surface-mount light touch switches, designed for durability and precision in portable electronic and security applications. These compact devices offer multiple operating forces, excellent electrical insulation, and endurance up to 1 million cycles, ensuring long-lasting performance. Their small footprint of 3.5 mm x 2.9 mm and height of 1.7 mm make them ideal for space-constrained designs. Suitable for automated assembly, packed in embossed taping for ease of handling and reliable installation, these switches are essential control components for electronics manufacturers seeking quality and consistency.
Order your Panasonic Series EVPAA502W light touch switch today and ensure reliable performance in portable electronic projects.
Frequently Asked Questions
Where can I buy Panasonic EVPAA502W?
You can click on the BUY or RFQ button to purchase EVPAA502W from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVPAA502W?
You can download the EVPAA502W datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVPAA502W?
Panasonic
