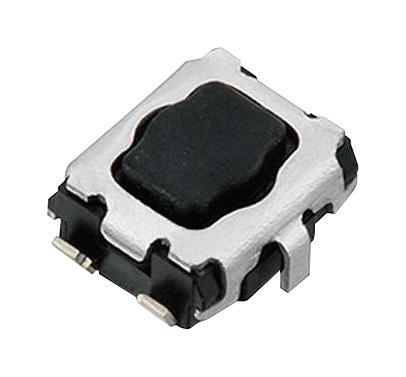

Panasonic EVPAA702W Light Touch Switch
The Panasonic EVPAA702W is a high-quality light touch switch designed for various electronic applications. It features a compact size of 3.5 mm by 2.9 mm with a height of 1.7 mm, suitable for portable devices and keyless entry systems. This switch is available in white with a 3.5 N operating force, offering 200,000 cycles of endurance. It includes optional ground terminal options and has a high reliability with durability for demanding environments. Ideal for operation controls requiring precise, responsive actuation in miniaturized electronics.
Panasonic EVPAA702W Light Touch Switch Specifications:
- Dimensions: 3.5 mm x 2.9 mm, height 1.7 mm
- Type: Snap action/Push-on, SPST
- Rating: 10 pA at 2 V DC, 20 mA at 15 V DC (Resistive load)
- Contact Resistance: max 100 mΩ
- Insulation Resistance: min 100 MΩ at 100 V DC
- Dielectric Withstanding Voltage: 250 V AC for 1 minute
- Operating Force: 3.5 N
- Mechanical Travel: 0.15 mm ± 0.1 mm
- Endurance: 200,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C (bulk), -20°C to +60°C (taping)
- Pack Quantity: 5,000 pcs in embossed taping, 25,000 pcs per carton
- Application: Electronic control switches, portable devices, keyless entry
Buy the Buy Panasonic Light Touch Switch Part Number EVPAA702W Online
Order the Panasonic EVPAA702W light touch switch online today to ensure high-quality, durable actuation for your electronic projects. This compact switch measures 3.5 mm by 2.9 mm with a height of 1.7 mm, making it ideal for small devices. With a 3.5 N operating force and a lifespan exceeding 200,000 cycles, it guarantees dependable performance. Suitable for portable equipment and keyless entry systems, this switch features optional ground terminals, high insulation resistance, and fast response, providing a reliable solution for demanding applications.
Buy Panasonic EVPAA702W now and experience unmatched reliability and performance for your electronic control needs.
Frequently Asked Questions
Where can I buy Panasonic EVPAA702W?
You can click on the BUY or RFQ button to purchase EVPAA702W from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVPAA702W?
You can download the EVPAA702W datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVPAA702W?
Panasonic
