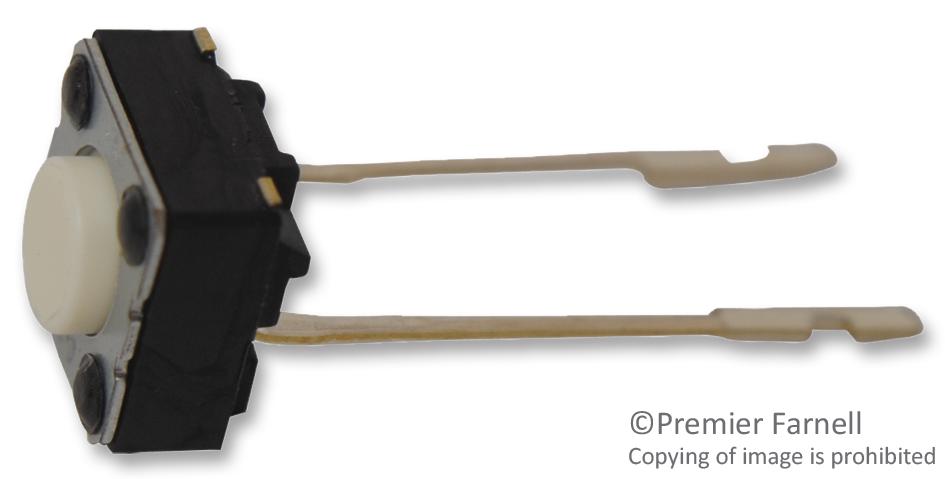

Panasonic EVQ21404M Light Touch Switch
The EVQ2 series light touch switches are high-quality, snap-action push-on switches suitable for electronic equipment operating at resistive loads. Available in various heights, including 4.3 mm, 5.0 mm, 7.0 mm, and 9.5 mm, these switches feature a circuit configuration of SPST with ratings up to 20 mA at 15 Vdc. They provide reliable electrical connection with a contact resistance of 50 mΩ max, withstand voltages of 250 Vac, and operate within -40°C to +85°C. Designed for durability, they endure at least 100,000 cycles, making them ideal for various electronic applications.
Panasonic EVQ21404M Light Touch Switch Specifications:
- Type: Snap action/Push-on type SPST
- Rating: 10 pA 2 Vdc to 20 mA 15 Vdc (Resistive load)
- Electrical Contact Resistance: 50 mΩ max.
- Insulation Resistance: 50 MΩ min. (at 100 Vdc)
- Dielectric Withstanding Voltage: 250 Vac for 1 minute
- Operating Force: 1.0 N to 16 N depending on model
- Travel: 0.25 mm+0.10 mm
- Operating Temperature: -40°C to +85°C
- Endurance: 100,000 cycles min.
- Material: Thermoplastic body, metal contacts
- Housing Colors: White, Red, Black
- Dimensions: Height options 4.3mm, 5.0mm, 7.0mm, 9.5mm, with standard mounting configurations
- Mounting: PWB mounting holes, snap-in terminal design
Buy the Buy Panasonic Light Touch Switches Part Number EVQ21404M Online
Purchase the Panasonic EVQ21404M light touch switch online now and enjoy reliable, high-quality performance for your electronic projects. Designed for durability, these switches offer consistent switching with a lifespan of 100,000 cycles, suitable for various control applications. Easy to install with snap-in terminals and available in multiple heights and colors, they are perfect for electronic equipment requiring precise and durable switch operation. Shop now and ensure your electronic device operates smoothly and efficiently.
Get Panasonic EVQ21404M today—built for electronic precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic EVQ21404M?
You can click on the BUY or RFQ button to purchase EVQ21404M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQ21404M?
You can download the EVQ21404M datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQ21404M?
Panasonic
