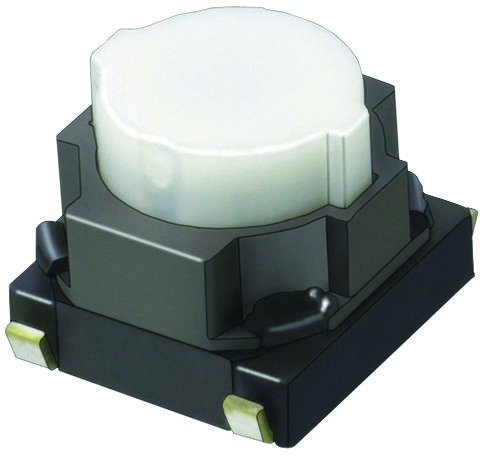

Panasonic EVQP1F05M Light Touch Switch
The Panasonic Light Touch Switches are compact, 6 mm square SMD push-on switches designed for precise operation in electronic equipment. Featuring steady contact resistance of 100 mΩ max., excellent solderability with J-bent terminals, and operating forces between 1.6N to 3.5N, these switches provide reliable performance for automotive, telecommunication, and musical instrument applications. With a contact rating of 10A at 2VDC to 50mA at 12VDC, they support up to 100,000 cycles endurance. Operating temperature ranges from -40°C to +85°C, and these switches are supplied in embossed tape for easy reflow soldering, ensuring durability and quality in industrial use.
Panasonic EVQP1F05M Light Touch Switch Specifications:
- Type: Snap action/Push-on type SPST
- Rating: 10 A at 2 Vdc to 50 mA at 12 Vdc (Resistive load)
- Contact Resistance: 100 mΩ max.
- Electrical Insulation Resistance: 100 MΩ min. at 100 Vdc
- Dielectric Withstanding Voltage: 250 Vac for 1 minute
- Operating Force: 1.6N to 3.5N depending on model
- Travel: 1.0 mm to 1.3 mm
- Height: 5.0 mm (including push plate)
- Temperature Range: -40°C to +85°C
- Endurance: 30,000 to 100,000 cycles based on model
- Electrical Rating: 10A at 2VDC, 50mA at 12VDC
- Dimensions: 6.0 mm x 6.1 mm x 5.0 mm height
- Packing: 2000 pcs per reel, 10,000 pcs per carton
- Soldering: Reflow conditions specified for embossed taping
- Applications: Automotive switches, telephones, musical instruments
Buy the Panasonic EVQP1F05M – Reliable Light Touch Switch for Industrial Applications
Enhance your electronic projects with Panasonic Light Touch Switches, offering compact size, high durability, and reliable contact stability. Engineered for precise operation in automotive, telecommunication, and musical equipment, these switches feature a 6 mm x 6.1 mm footprint with a height of only 5.0 mm, ensuring easy integration into tight spaces. Designed with excellent solderability and long cycle life, they support up to 100,000 operations. Order now to benefit from quick delivery, quality assurance, and the trusted performance that Panasonic provides for industrial electronics.
Buy Panasonic EVQP1F05M now and experience unmatched reliability and performance in compact electronic switching solutions.
Frequently Asked Questions
Where can I buy Panasonic EVQP1F05M?
You can click on the BUY or RFQ button to purchase EVQP1F05M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQP1F05M?
You can download the EVQP1F05M datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQP1F05M?
Panasonic
