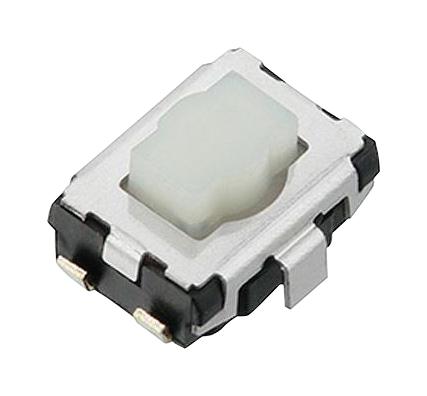

Panasonic EVQP9W02W Light Touch Switch
The EVQP9W02W is a high-quality light touch switch designed for portable electronic devices, automotive keyless entry, and car audio systems. It features a compact size of 4.7 mm x 3.5 mm, with a short push travel of 2.1 mm, and offers excellent durability with up to 1,000,000 operating cycles. The switch supports resistive loads up to 15 V DC at 20 mA and is rated for a dielectric withstand voltage of 250 V AC, ensuring reliable performance in demanding environments. Its design facilitates high mountability with J-bent terminals and a variety of operating force options. Suitable for applications requiring high mechanical lifespan and precise switching, it offers stable electrical insulation and low contact resistance, making it ideal for consumer electronics and automotive markets.
Panasonic EVQP9W02W Light Touch Switch Specifications:
- Dimensions: 4.7 mm x 3.5 mm
- Height: 2.1 mm to 2.5 mm (short push travel)
- Travel Type: Short Push
- Operating Force: 1.0 N to 5.0 N
- Contact Resistance: 100 mΩ max
- Electrical Insulation Resistance: 100 MΩ min at 100 VDC
- Dielectric Withstanding Voltage: 250 V AC for 1 minute
- Endurance: Up to 1,000,000 cycles for 25 N force, varies for lower forces
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -20°C to +60°C
- Voltage Rating: 15 V DC (resistive load)
- Material: Metal contacts, plastic housing
- Pack Quantity: 4,000 pcs per reel, 20,000 pcs per carton
- Mounting: High mountability with J-bent terminals
- Recommended Applications: Portable electronic devices, automotive keyless entry, car audio
Buy the Buy Panasonic Light Touch Switches Part Number EVQP9W02W Online
Discover the Panasonic EVQP9W02W light touch switch, optimized for portable electronics, automotive keyless systems, and audio equipment. This compact switch measures 4.7 mm by 3.5 mm, supporting up to 1,000,000 cycles of operation for high durability. With a short push travel of 2.1 mm and multiple force options, it offers reliable switching under demanding conditions. Its design includes high mountability with J-bent terminals, outstanding electrical insulation, and low contact resistance, making it an ideal choice for precision electronic and automotive applications. Purchase online now for quality you can trust.
Get Panasonic EVQP9W02W today—built for precision, durable long-lasting switching in portable electronics and automotive systems.
Frequently Asked Questions
Where can I buy Panasonic EVQP9W02W?
You can click on the BUY or RFQ button to purchase EVQP9W02W from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQP9W02W?
You can download the EVQP9W02W datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQP9W02W?
Panasonic
