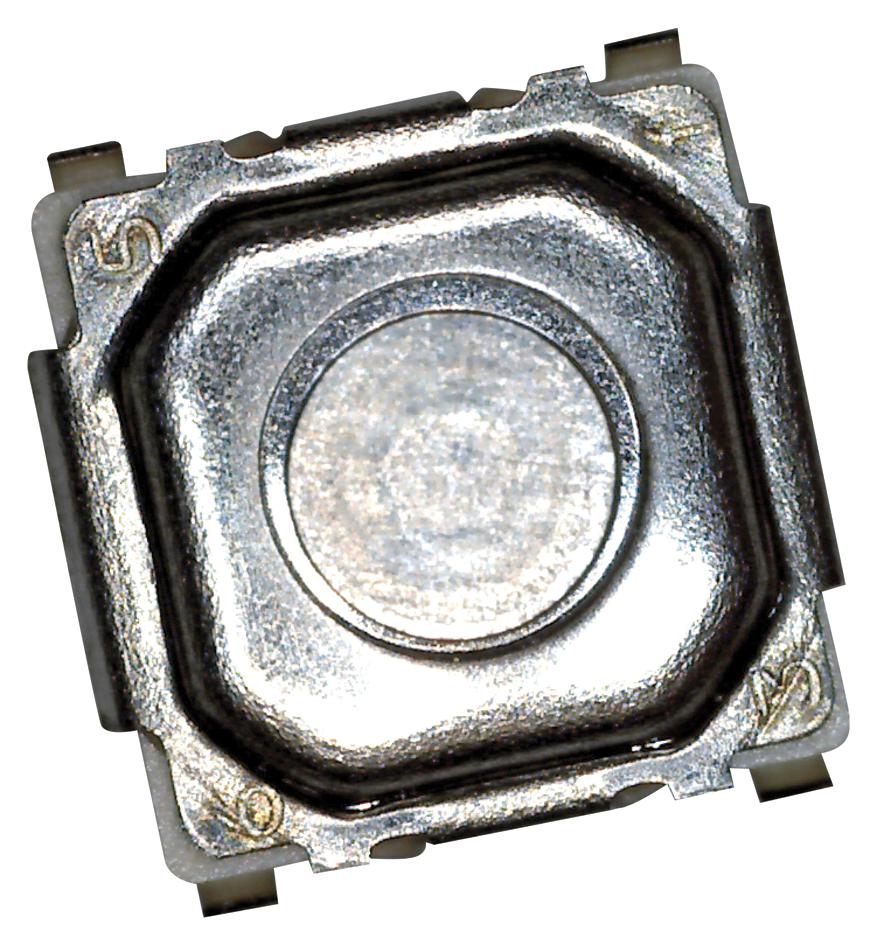

Panasonic EVQPLHA15 Light Touch Switch
The EVQ-PLHA15 is a surface-mount SPST tactile switch featuring a light touch activation with a push plate, suitable for electronic devices. It supports reflow soldering, has a contact resistance of max. 50 mΩ, insulation resistance of min. 50 MΩ at 100VDC, and withstands 250VAC for 1 min. Operating life exceeds 2 million cycles, functioning from -20°C to +70°C. Designed for reliable switching in portable electronics, audio systems, and computer hardware, ensuring durability and precise control in compact applications.
Panasonic EVQPLHA15 Light Touch Switch Specifications:
- Type: SPST, Snap action / Push-on
- Rating: 10 pA 2 VDC to 20 mA 15 VDC (Resistive load)
- Contact Resistance: 50 mΩ max.
- Insulation Resistance: 50 MΩ min. at 100 V DC
- Dielectric Withstanding Voltage: 250 VAC for 1 minute
- Operating Temperature: -20°C to +70°C
- Operating Force: Varies by model, approximately 1.0N to 3.5N
- Height: 0.8 mm with push plate, 1.5 mm without
- Operational Life: 200,000 to 2,000,000 cycles depending on model
- Support Reflow Soldering, Surface Mount Design
- Physical Dimensions: Refer to datasheet for detailed size specifications
- Packaging: Embossed Taping, Reel Pack
Buy the Panasonic Series EVQ Light Touch Switches: EVQPLHA15
Order the Panasonic EVQPLHA15 light touch switch online today for high durability, excellent electrical performance, and easy surface-mount installation. Perfect for portable electronics, audio systems, and computer peripherals, this switch offers a long operational life exceeding 2 million cycles. Compact size with a height of just 0.8 mm with push plate ensures space-saving design. Supported by reflow soldering, it ensures secure mounting, making it ideal for modern compact electronic products. Elevate your device control with this reliable switch.
Buy Panasonic EVQPLHA15 now and experience unmatched reliability and performance for compact electronic devices and precise switching.
Frequently Asked Questions
Where can I buy Panasonic EVQPLHA15?
You can click on the BUY or RFQ button to purchase EVQPLHA15 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQPLHA15?
You can download the EVQPLHA15 datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQPLHA15?
Panasonic
