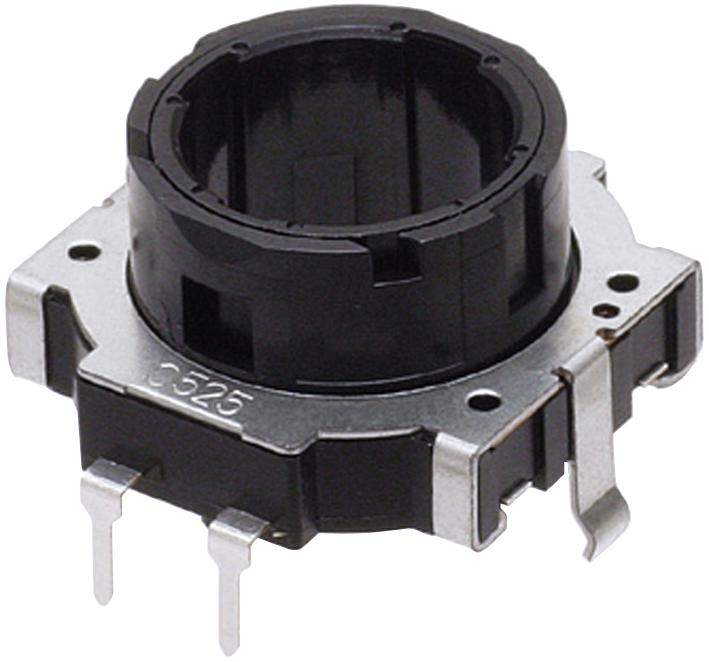

Panasonic EVQV6B00909B Rotary Encoder
The Panasonic EVQV6B00909B is a high-reliability, 360-degree rotation encoder designed for precise control in audio, video, and industrial applications. Featuring a compact design with a center space for easy mounting, it offers 18 detent points, a resolution of 9 pulses per 360°, and electrical ratings of 1 mA at 10 V. Its durable construction ensures a minimum rotation life of 30,000 cycles. Ideal for car audio, AV equipment, and control systems, it combines excellent operability with robust performance.
Panasonic EVQV6B00909B Rotary Encoder Specifications:
- Type: EVQV6
- Rotation: 360° endless
- Detents: 18 points
- Rotation Torque: 11 mN-m, 18 mN-m
- Output Signal: Phase A and B
- Resolution: 9 pulses/360°
- Electrical Rating: 1 mA, 10 V
- Contact Resistance: 1.0 max.
- Chattering: 5 ms max.
- Insulation Resistance: 50 MΩ min. at 250 Vdc
- Dielectric Withstanding Voltage: 300 Vac for 1 min
- Rotation Life: 30,000 cycles min.
- PWB Mounting Hole: For reference, PWB thickness 1.6 mm
- Dimensions: Refer to drawings, not to scale
- Quantity/Pack: 100 pcs, Tray Pack
- Carton Quantity: 2000 pcs
Buy the Panasonic EVQV6 – Reliable Encoder for Industrial Applications
Purchase the Panasonic EVQV6B00909B encoder online today to enhance your audio, video, and industrial control systems. This durable, high-performance rotary encoder features 18 detent points and a resolution of 9 pulses per turn, ensuring precise control and long-lasting operation. Its compact design allows easy mounting with center space on PCB, making it ideal for car audio, AV equipment, and control applications. Trust Panasonic’s quality for your technical projects, and enjoy fast, secure online ordering for reliable delivery.
Order your Panasonic EVQV6B00909B encoder today and secure precise, reliable control for audio, video, and automation projects with ease.
Frequently Asked Questions
Where can I buy Panasonic EVQV6B00909B?
You can click on the BUY or RFQ button to purchase EVQV6B00909B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQV6B00909B?
You can download the EVQV6B00909B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQV6B00909B?
Panasonic
