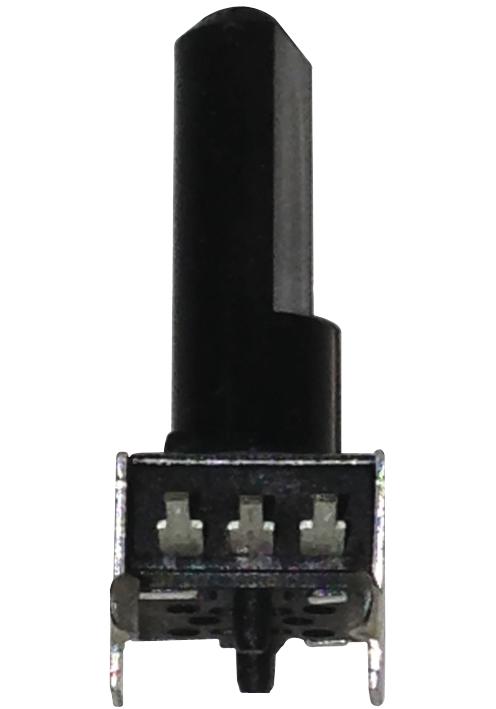

Panasonic EVUF3MFL3D14 Rotary Potentiometer
The Panasonic EVUF3MFL3D14 is a 9 mm square rotary potentiometer with an insulated shaft, designed for high-precision applications in audio, video, and musical instruments. Featuring a compact, rigid rectangular shape for automatic insertion, it offers smooth rotation over 300°, with various detent options and bushing types including with sleeve or without bushing. Its durable construction ensures reliable operation in demanding environments, making it suitable for electronic audio equipment, mixers, and control systems requiring stable resistance tuning and long lifespan.
Panasonic EVUF3MFL3D14 Rotary Potentiometer Specifications:
- Rotation Angle: 300°
- Shaft Types: Without bushing, with bushing, with sleeve
- Durability: Operating Life 10,000 cycles minimum
- Resistance Range: 1 kΩ to 1 MΩ, tolerance +20%
- Power Rating: 0.05 W at 0°C to 50°C
- Insulation Resistance: 50 MΩ min. at 250 Vdc
- Dielectric Withstand Voltage: 250 Vac for 1 minute
- Noise Level: 100 mV max. at 20 V, 30 r/min shaft rotation
- Mechanical Torque: 1 mN·m to 20 mN·m
- Shaft Wobble: Max. 0.8 mm
- Mounting: Snap-in with recommended piercing plan
- Temperature Range: Operational up to 50°C, derated above
Buy the Panasonic Series EVUE Rotary Potentiometer: EVUF3MFL3D14
Upgrade your electronic equipment with the Panasonic Rotary Potentiometer EVUF3MFL3D14, a compact and durable component designed for precise resistance adjustments. Suitable for audio, video, and musical instrument applications, it features an insulated shaft, high rotational durability, and reliable performance in various control systems. Its easy snap-in installation and wide resistance range make it ideal for professional audio mixers, control panels, and automation projects. Buy online today and enhance your project's reliability and performance with this high-quality potentiometer, ensuring long-lasting, stable operation.
Order your Panasonic Series EVUE EVUF3MFL3D14 today and give your electronic projects the dependable precision they need for optimal performance.
